#include <spmh.h>

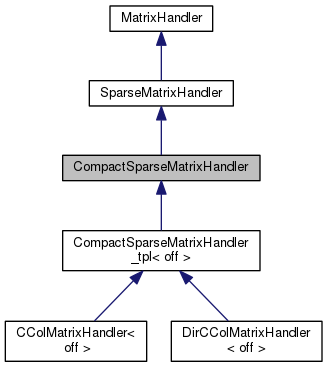

Inheritance diagram for CompactSparseMatrixHandler:

Collaboration diagram for CompactSparseMatrixHandler:

Public Member Functions
	CompactSparseMatrixHandler (const integer &n, const integer &nn, std::vector< doublereal > &x, const std::vector< integer > &i, const std::vector< integer > &p)

virtual	~CompactSparseMatrixHandler ()

virtual CompactSparseMatrixHandler *	Copy (void) const =0

void	AddUnchecked (const CompactSparseMatrixHandler &m)

virtual const doublereal *	pdGetMat (void) const

void	Reset (void)

virtual integer	MakeCompressedColumnForm (doublereal const Ax, integer const Ai, integer *const Ap, int offset=0) const

virtual integer	MakeCompressedColumnForm (std::vector< doublereal > &Ax, std::vector< integer > &Ai, std::vector< integer > &Ap, int offset=0) const

virtual integer	MakeIndexForm (doublereal const Ax, integer const Arow, integer const Acol, integer const AcolSt, int offset=0) const

virtual integer	MakeIndexForm (std::vector< doublereal > &Ax, std::vector< integer > &Arow, std::vector< integer > &Acol, std::vector< integer > &AcolSt, int offset=0) const

Public Member Functions inherited from SparseMatrixHandler
const integer	Nz () const

	SparseMatrixHandler (const integer &n, const integer &nn=0)

virtual	~SparseMatrixHandler (void)

integer	iGetNumRows (void) const

integer	iGetNumCols (void) const

virtual VectorHandler &	GetCol (integer icol, VectorHandler &out) const =0

Public Member Functions inherited from MatrixHandler
virtual	~MatrixHandler (void)

virtual void	Resize (integer, integer)=0

virtual void	ResizeReset (integer, integer)

virtual doublereal *	pdGetMat (void)

virtual integer *	piGetRows (void) const

virtual integer *	piGetCols (void) const

virtual integer	PacMat (void)

virtual void	PutCoef (integer iRow, integer iCol, const doublereal &dCoef)

virtual void	IncCoef (integer iRow, integer iCol, const doublereal &dCoef)

virtual void	DecCoef (integer iRow, integer iCol, const doublereal &dCoef)

virtual const doublereal &	dGetCoef (integer iRow, integer iCol) const

virtual const doublereal &	operator() (integer iRow, integer iCol) const =0

virtual doublereal &	operator() (integer iRow, integer iCol)=0

virtual MatrixHandler &	operator= (const MatrixHandler &MH)

virtual MatrixHandler &	operator+= (const SubMatrixHandler &SubMH)

virtual MatrixHandler &	operator-= (const SubMatrixHandler &SubMH)

virtual MatrixHandler &	operator+= (const VariableSubMatrixHandler &SubMH)

virtual MatrixHandler &	operator-= (const VariableSubMatrixHandler &SubMH)

virtual MatrixHandler &	ScalarMul (const doublereal &d)

virtual MatrixHandler &	MatMatMul (MatrixHandler &out, const MatrixHandler &in) const

virtual MatrixHandler &	MatTMatMul (MatrixHandler &out, const MatrixHandler &in) const

virtual MatrixHandler &	MatMatIncMul (MatrixHandler &out, const MatrixHandler &in) const

virtual MatrixHandler &	MatTMatIncMul (MatrixHandler &out, const MatrixHandler &in) const

virtual MatrixHandler &	MatMatDecMul (MatrixHandler &out, const MatrixHandler &in) const

virtual MatrixHandler &	MatTMatDecMul (MatrixHandler &out, const MatrixHandler &in) const

virtual VectorHandler &	MatVecMul (VectorHandler &out, const VectorHandler &in) const

virtual VectorHandler &	MatTVecMul (VectorHandler &out, const VectorHandler &in) const

virtual VectorHandler &	MatVecIncMul (VectorHandler &out, const VectorHandler &in) const

virtual VectorHandler &	MatTVecIncMul (VectorHandler &out, const VectorHandler &in) const

virtual VectorHandler &	MatVecDecMul (VectorHandler &out, const VectorHandler &in) const

virtual VectorHandler &	MatTVecDecMul (VectorHandler &out, const VectorHandler &in) const

virtual doublereal	ConditionNumber (enum Norm_t eNorm=NORM_1) const

virtual doublereal	Norm (enum Norm_t eNorm=NORM_1) const

Protected Attributes
bool	bMatDuplicate

std::vector< doublereal > &	Ax

const std::vector< integer > &	Ai

const std::vector< integer > &	Ap

Protected Attributes inherited from SparseMatrixHandler
integer	NRows

integer	NCols

integer	NZ

Additional Inherited Members
Public Types inherited from MatrixHandler
enum	Norm_t { NORM_1, NORM_INF }

Protected Member Functions inherited from MatrixHandler
virtual MatrixHandler &	MatMatMul_base (void(MatrixHandler::*op)(integer iRow, integer iCol, const doublereal &dCoef), MatrixHandler &out, const MatrixHandler &in) const

virtual MatrixHandler &	MatTMatMul_base (void(MatrixHandler::*op)(integer iRow, integer iCol, const doublereal &dCoef), MatrixHandler &out, const MatrixHandler &in) const

virtual VectorHandler &	MatVecMul_base (void(VectorHandler::*op)(integer iRow, const doublereal &dCoef), VectorHandler &out, const VectorHandler &in) const

virtual VectorHandler &	MatTVecMul_base (void(VectorHandler::*op)(integer iRow, const doublereal &dCoef), VectorHandler &out, const VectorHandler &in) const

Detailed Description

Definition at line 149 of file spmh.h.

Constructor & Destructor Documentation

CompactSparseMatrixHandler::CompactSparseMatrixHandler	(	const integer &	n,
		const integer &	nn,
		std::vector< doublereal > &	x,
		const std::vector< integer > &	i,
		const std::vector< integer > &	p
	)

Definition at line 49 of file spmh.cc.

References Ax, and SparseMatrixHandler::NZ.

 : SparseMatrixHandler(n, nn),
 bMatDuplicate(false),
 Ax(x),
 Ai(i),
 Ap(p)
 {
         NZ = Ax.size();
 }

CompactSparseMatrixHandler::~CompactSparseMatrixHandler ( )

virtual

Definition at line 63 of file spmh.cc.

References Ax, and bMatDuplicate.

 {
         if (bMatDuplicate) {
                 delete &Ax;
         }
 }

Member Function Documentation

void CompactSparseMatrixHandler::AddUnchecked ( const CompactSparseMatrixHandler & m )

Definition at line 72 of file spmh.cc.

References Ai, Ap, ASSERT, Ax, and MBDYN_EXCEPT_ARGS.

 {
         /* FIXME: put in stl-ish form;
          * see if we can use something from optimized blas,
          * e.g. ATLAS, goto or so... */

         /* checks - uncomment to enable */
 #ifdef DEBUG
         ASSERT(Ax.size() == m.Ax.size());
         ASSERT(Ai.size() == m.Ai.size());
         ASSERT(Ap.size() == m.Ap.size());
         for (std::vector<doublereal>::size_type i = 0; i < Ai.size(); i++) {
                 if (Ai[i] != m.Ai[i]) {
                         silent_cerr("AddUnchecked: Ai[" << i << "] differs" << std::endl);
                         throw ErrGeneric(MBDYN_EXCEPT_ARGS);
                 }
         }

         for (std::vector<doublereal>::size_type i = 0; i < Ap.size(); i++) {
                 if (Ap[i] != m.Ap[i]) {
                         silent_cerr("AddUnchecked: Ap[" << i << "] differs" << std::endl);
                         throw ErrGeneric(MBDYN_EXCEPT_ARGS);
                 }
         }
 #endif /* DEBUG */

         doublereal *d = &Ax[0], *s = &m.Ax[0];
         std::vector<doublereal>::size_type n = Ax.size();
         for (std::vector<doublereal>::size_type i = 0; i < n; i++) {
                 d[i] += s[i];
         }
 }

virtual CompactSparseMatrixHandler* CompactSparseMatrixHandler::Copy ( void ) const

pure virtual

Implemented in DirCColMatrixHandler< off >, and CColMatrixHandler< off >.

integer CompactSparseMatrixHandler::MakeCompressedColumnForm	(	doublereal *const	Ax,
		integer *const	Ai,
		integer *const	Ap,
		int	offset = `0`
	)		const

virtual

Implements SparseMatrixHandler.

Definition at line 112 of file spmh.cc.

References MBDYN_EXCEPT_ARGS, and SparseMatrixHandler::Nz().

 {
         throw ErrGeneric(MBDYN_EXCEPT_ARGS);
         return Nz();
 }

Here is the call graph for this function:

integer CompactSparseMatrixHandler::MakeCompressedColumnForm	(	std::vector< doublereal > &	Ax,
		std::vector< integer > &	Ai,
		std::vector< integer > &	Ap,
		int	offset = `0`
	)		const

virtual

Implements SparseMatrixHandler.

Definition at line 121 of file spmh.cc.

References MBDYN_EXCEPT_ARGS, and SparseMatrixHandler::Nz().

 {
         throw ErrGeneric(MBDYN_EXCEPT_ARGS);
         return Nz();
 }

Here is the call graph for this function:

integer CompactSparseMatrixHandler::MakeIndexForm	(	doublereal *const	Ax,
		integer *const	Arow,
		integer *const	Acol,
		integer *const	AcolSt,
		int	offset = `0`
	)		const

virtual

Implements SparseMatrixHandler.

Definition at line 130 of file spmh.cc.

References MBDYN_EXCEPT_ARGS, and SparseMatrixHandler::Nz().

 {
         throw ErrGeneric(MBDYN_EXCEPT_ARGS);
         return Nz();
 }

Here is the call graph for this function:

integer CompactSparseMatrixHandler::MakeIndexForm	(	std::vector< doublereal > &	Ax,
		std::vector< integer > &	Arow,
		std::vector< integer > &	Acol,
		std::vector< integer > &	AcolSt,
		int	offset = `0`
	)		const

virtual

Implements SparseMatrixHandler.

Definition at line 139 of file spmh.cc.

References MBDYN_EXCEPT_ARGS, and SparseMatrixHandler::Nz().

 {
         throw ErrGeneric(MBDYN_EXCEPT_ARGS);
         return Nz();
 }

Here is the call graph for this function:

virtual const doublereal* CompactSparseMatrixHandler::pdGetMat ( void ) const

inlinevirtual

Reimplemented from MatrixHandler.

Definition at line 178 of file spmh.h.

References Ax.

                                                               {
                 return &Ax[0];
         };

void CompactSparseMatrixHandler::Reset ( void )

virtual

Implements MatrixHandler.

Definition at line 106 of file spmh.cc.

References Ax.

 {
         std::fill(Ax.begin(), Ax.end(), 0.);
 }

Member Data Documentation

const std::vector<integer>& CompactSparseMatrixHandler::Ai

protected

Definition at line 153 of file spmh.h.

Referenced by AddUnchecked().

const std::vector<integer>& CompactSparseMatrixHandler::Ap

protected

Definition at line 154 of file spmh.h.

Referenced by AddUnchecked().

std::vector<doublereal>& CompactSparseMatrixHandler::Ax

protected

Definition at line 152 of file spmh.h.

Referenced by AddUnchecked(), CompactSparseMatrixHandler(), pdGetMat(), Reset(), and ~CompactSparseMatrixHandler().

bool CompactSparseMatrixHandler::bMatDuplicate

protected

Definition at line 151 of file spmh.h.

Referenced by CColMatrixHandler< off >::Copy(), DirCColMatrixHandler< off >::Copy(), and ~CompactSparseMatrixHandler().

The documentation for this class was generated from the following files:
