DiscreteControlProcess Class Reference

#include <discctrl.h>

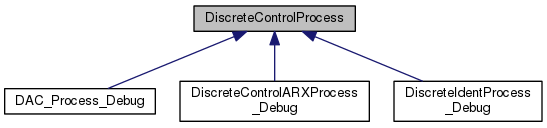

Inheritance diagram for DiscreteControlProcess:

Public Types
enum	{   DISCPROC_UNKNOWN = -1, DISCPROC_AR = 0x1U, DISCPROC_MA = 0x2U, DISCPROC_X = 0x4U,   DISCPROC_ARX = (DISCPROC_AR | DISCPROC_X), DISCPROC_ARMA = (DISCPROC_AR | DISCPROC_MA), DISCPROC_ARMAX = (DISCPROC_AR | DISCPROC_MA | DISCPROC_X), DISCPROC_LAST }

Public Member Functions
virtual	~DiscreteControlProcess (void)
virtual void	GetInput (std::vector< doublereal > &dIn)=0
virtual void	PutOutput (const std::vector< doublereal > &dOut, const std::vector< doublereal > &dIn, const std::vector< doublereal > &dDesiredOut)=0

Detailed Description

Definition at line 98 of file discctrl.h.

Member Enumeration Documentation

anonymous enum

Enumerator
DISCPROC_UNKNOWN
DISCPROC_AR
DISCPROC_MA
DISCPROC_X
DISCPROC_ARX
DISCPROC_ARMA
DISCPROC_ARMAX
DISCPROC_LAST

Definition at line 100 of file discctrl.h.

             {
                DISCPROC_UNKNOWN        = -1,

                DISCPROC_AR             = 0x1U,
                DISCPROC_MA             = 0x2U,
                DISCPROC_X                      = 0x4U,

                DISCPROC_ARX            = (DISCPROC_AR | DISCPROC_X),
                DISCPROC_ARMA           = (DISCPROC_AR | DISCPROC_MA),
                DISCPROC_ARMAX          = (DISCPROC_AR | DISCPROC_MA | DISCPROC_X),

                DISCPROC_LAST
        };

Constructor & Destructor Documentation

DiscreteControlProcess::~DiscreteControlProcess ( void  )

virtual

Definition at line 46 of file discctrl.cc.

References NO_OP.

{
        NO_OP;
}

Member Function Documentation

virtual void DiscreteControlProcess::GetInput ( std::vector< doublereal > &  dIn )

pure virtual

Implemented in DAC_Process_Debug, DiscreteIdentProcess_Debug, and DiscreteControlARXProcess_Debug.

Referenced by DiscreteControlElem::AssRes().

virtual void DiscreteControlProcess::PutOutput ( const std::vector< doublereal > &  dOut, const std::vector< doublereal > &  dIn, const std::vector< doublereal > &  dDesiredOut  )

pure virtual

Implemented in DAC_Process_Debug, DiscreteIdentProcess_Debug, and DiscreteControlARXProcess_Debug.

Referenced by DiscreteControlElem::AfterConvergence().

---

The documentation for this class was generated from the following files:

• discctrl.h
• discctrl.cc
