DoubleStepDriveCaller Class Reference

#include <drive_.h>

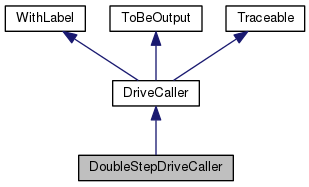

Inheritance diagram for DoubleStepDriveCaller:

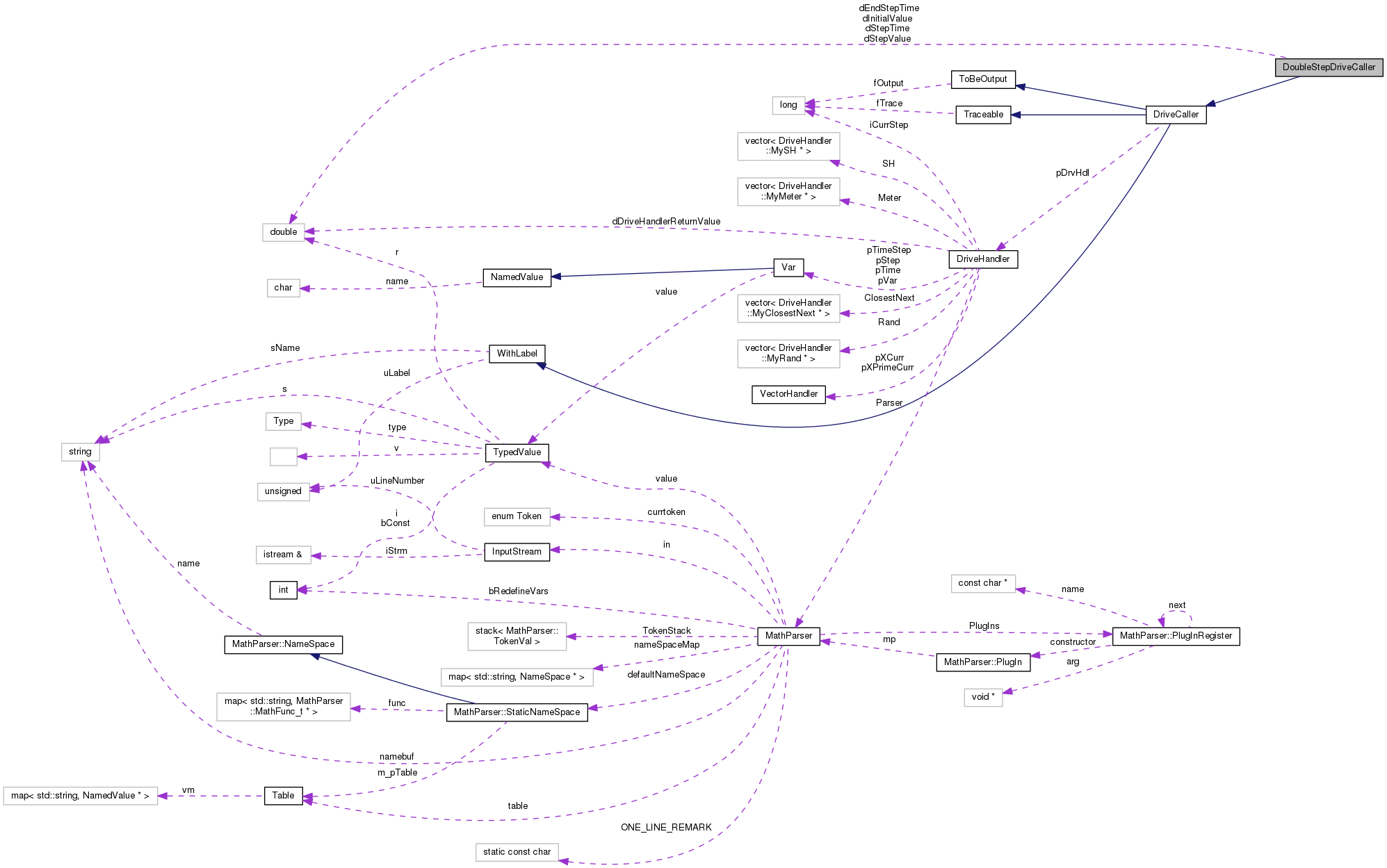

Collaboration diagram for DoubleStepDriveCaller:

Public Member Functions
	DoubleStepDriveCaller (const DriveHandler *pDH, doublereal d1, doublereal d2, doublereal d3, doublereal d4)
	~DoubleStepDriveCaller (void)
virtual DriveCaller *	pCopy (void) const
virtual std::ostream &	Restart (std::ostream &out) const
doublereal	dGet (const doublereal &dVar) const
virtual bool	bIsDifferentiable (void) const
virtual doublereal	dGetP (const doublereal &dVar) const
Public Member Functions inherited from DriveCaller
	DriveCaller (const DriveHandler *pDH)
virtual	~DriveCaller (void)
virtual doublereal	dGet (void) const
virtual doublereal	dGetP (void) const
virtual void	SetDrvHdl (const DriveHandler *pDH)
virtual const DriveHandler *	pGetDrvHdl (void) const
virtual void	Output (OutputHandler &OH) const
virtual void	Trace (OutputHandler &OH) const
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const
Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)
virtual	~ToBeOutput (void)
virtual void	OutputPrepare (OutputHandler &OH)
virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const
virtual flag	fToBeOutput (void) const
virtual bool	bToBeOutput (void) const
virtual void	SetOutputFlag (flag f=flag(1))
Public Member Functions inherited from Traceable
	Traceable (flag fTrace=0)
virtual	~Traceable (void)
virtual flag	fToBeTraced (void) const
virtual void	SetTraceFlag (flag f=TRACE)

Private Attributes
doublereal	dStepTime
doublereal	dStepValue
doublereal	dEndStepTime
doublereal	dInitialValue

Additional Inherited Members
Public Types inherited from DriveCaller
enum	OutputFlags { OUTPUT_VALUE = OUTPUT_PRIVATE << 0, OUTPUT_DERIVATIVE = OUTPUT_PRIVATE << 1 }
enum	TraceFlags { TRACE_VALUE = TRACE_PRIVATE << 0, TRACE_DERIVATIVE = TRACE_PRIVATE << 1 }
Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }
Public Types inherited from Traceable
enum	{ TRACE = 0x01U, TRACE_PUBLIC_MASK = 0x0FU, TRACE_PRIVATE = 0x10U, TRACE_PRIVATE_MASK = ~TRACE_PUBLIC_MASK }
Protected Attributes inherited from DriveCaller
DriveHandler *	pDrvHdl
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName
Protected Attributes inherited from ToBeOutput
flag	fOutput

Detailed Description

Definition at line 504 of file drive_.h.

Constructor & Destructor Documentation

DoubleStepDriveCaller::DoubleStepDriveCaller	(	const DriveHandler *	pDH,
		doublereal	d1,
		doublereal	d2,
		doublereal	d3,
		doublereal	d4
	)

Definition at line 424 of file drive_.cc.

References NO_OP.

Referenced by pCopy().

: DriveCaller(pDH), dStepTime(d1), dStepValue(d2),
dEndStepTime(d3), dInitialValue(d4)
{
        NO_OP;
}

DoubleStepDriveCaller::~DoubleStepDriveCaller

(

void

)

Definition at line 432 of file drive_.cc.

References NO_OP.

{
        NO_OP;
}

Member Function Documentation

bool DoubleStepDriveCaller::bIsDifferentiable ( void  ) const

inlinevirtual

Reimplemented from DriveCaller.

Definition at line 552 of file drive_.h.

{
        return true;
}

doublereal DoubleStepDriveCaller::dGet ( const doublereal &  dVar ) const

inlinevirtual

Implements DriveCaller.

Definition at line 537 of file drive_.h.

References dEndStepTime, dInitialValue, dStepTime, and dStepValue.

{
        if (dVar > dStepTime && dVar < dEndStepTime) {
                return dStepValue;
        }

        if (dVar < dStepTime || dVar > dEndStepTime) {
                return dInitialValue;
        }

        /* else if dVar == dStepTime || dVar == dEndStepTime */
        return (dInitialValue + dStepValue)/2.;
}

doublereal DoubleStepDriveCaller::dGetP ( const doublereal &  dVar ) const

inlinevirtual

Reimplemented from DriveCaller.

Definition at line 558 of file drive_.h.

References dEndStepTime, dStepTime, and MBDYN_EXCEPT_ARGS.

{
        /* FIXME: what if we get exactly to the step time? */
        if (dVar == dStepTime || dVar == dEndStepTime) {
                silent_cerr("singularity in double step drive derivative at " << dVar << std::endl);
                throw ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        return 0.;
}

DriveCaller * DoubleStepDriveCaller::pCopy ( void  ) const

virtual

Implements DriveCaller.

Definition at line 440 of file drive_.cc.

References dEndStepTime, dInitialValue, DoubleStepDriveCaller(), dStepTime, dStepValue, DriveCaller::pDrvHdl, and SAFENEWWITHCONSTRUCTOR.

{
        DriveCaller* pDC = 0;
        SAFENEWWITHCONSTRUCTOR(pDC,
                DoubleStepDriveCaller,
                DoubleStepDriveCaller(pDrvHdl, dStepTime, dStepValue, dEndStepTime, dInitialValue));
        return pDC;
}

Here is the call graph for this function:

std::ostream & DoubleStepDriveCaller::Restart ( std::ostream &  out ) const

virtual

Implements DriveCaller.

Definition at line 452 of file drive_.cc.

References dEndStepTime, dInitialValue, dStepTime, and dStepValue.

{
        return out
                << " double step, " << dStepTime
                << ", " << dEndStepTime
                << ", " << dStepValue
                << ", " << dInitialValue;
}

Member Data Documentation

doublereal DoubleStepDriveCaller::dEndStepTime

private

Definition at line 508 of file drive_.h.

Referenced by dGet(), dGetP(), pCopy(), and Restart().

doublereal DoubleStepDriveCaller::dInitialValue

private

Definition at line 509 of file drive_.h.

Referenced by dGet(), pCopy(), and Restart().

doublereal DoubleStepDriveCaller::dStepTime

private

Definition at line 506 of file drive_.h.

Referenced by dGet(), dGetP(), pCopy(), and Restart().

doublereal DoubleStepDriveCaller::dStepValue

private

Definition at line 507 of file drive_.h.

Referenced by dGet(), pCopy(), and Restart().

---

The documentation for this class was generated from the following files:

• drive_.h
• drive_.cc
