GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal > Class Template Reference

#include <ginaccltp.h>

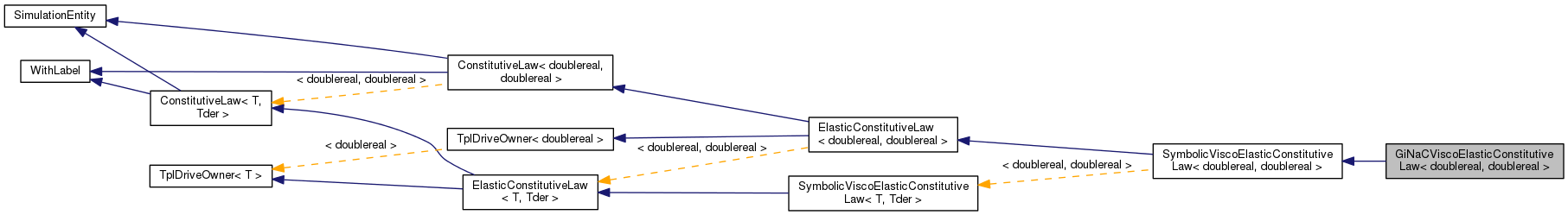

Inheritance diagram for GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >:

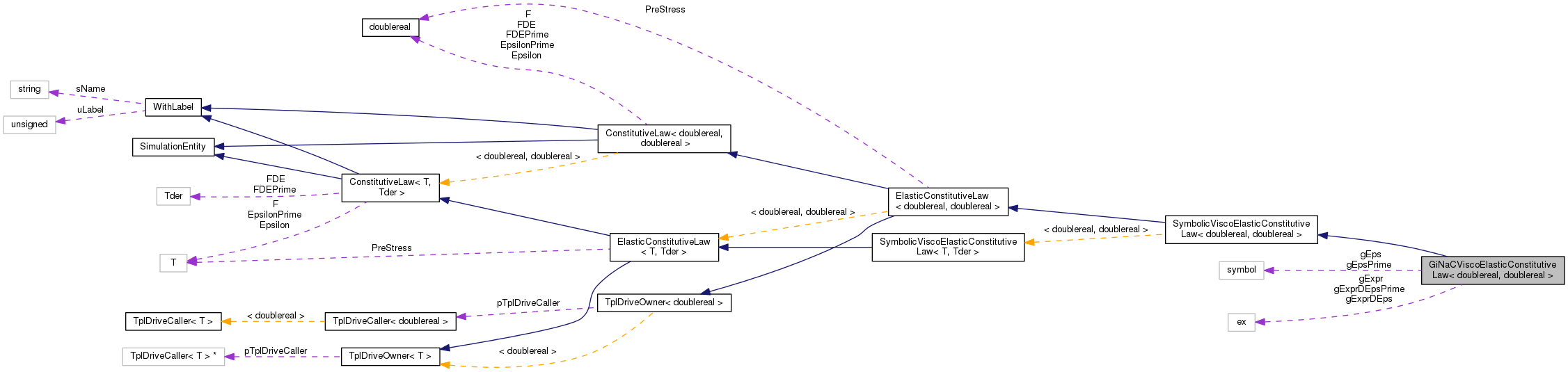

Collaboration diagram for GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >:

Public Member Functions

 GiNaCViscoElasticConstitutiveLaw (const TplDriveCaller< doublereal > *pDC, const doublereal &PStress, std::vector< std::string > &epsilon, std::vector< std::string > &epsilonPrime, std::vector< std::string > &expression)

virtual ~GiNaCViscoElasticConstitutiveLaw (void)

virtual ConstitutiveLaw
< doublereal, doublereal > *
pCopy (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual void Update (const doublereal &Eps, const doublereal &EpsPrime=0.)

- Public Member Functions inherited from SymbolicViscoElasticConstitutiveLaw< doublereal, doublereal >
 SymbolicViscoElasticConstitutiveLaw (const TplDriveCaller< doublereal > *pDC, const doublereal &PStress, std::vector< std::string > &epsilon, std::vector< std::string > &epsilonPrime, std::vector< std::string > &expression)

virtual ~SymbolicViscoElasticConstitutiveLaw (void)

virtual ConstLawType::Type GetConstLawType (void) const

- Public Member Functions inherited from ElasticConstitutiveLaw< doublereal, doublereal >
 ElasticConstitutiveLaw (const TplDriveCaller< doublereal > *pDC, const doublereal &PStress)

virtual ~ElasticConstitutiveLaw (void)

void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual HintParseHint (DataManager *pDM, const char *s) const

- Public Member Functions inherited from ConstitutiveLaw< doublereal, doublereal >
 ConstitutiveLaw (void)

virtual ~ConstitutiveLaw (void)

virtual void AfterConvergence (const doublereal &Eps, const doublereal &EpsPrime=mb_zero< doublereal >())

virtual const doublerealGetEpsilon (void) const

virtual const doublerealGetEpsilonPrime (void) const

virtual const doublerealGetF (void) const

virtual const doublerealGetFDE (void) const

virtual const doublerealGetFDEPrime (void) const

virtual unsigned int iGetNumDof (void) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order GetDofType (unsigned int i) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from TplDriveOwner< doublereal >
 TplDriveOwner (const TplDriveCaller< doublereal > *pDC=0)

virtual ~TplDriveOwner (void)

void Set (const TplDriveCaller< doublereal > *pDC)

TplDriveCaller< doublereal > * pGetDriveCaller (void) const

doublereal Get (const doublereal &dVar) const

doublereal Get (void) const

virtual bool bIsDifferentiable (void) const

virtual doublereal GetP (void) const


Private Attributes

GiNaC::symbol gEps

GiNaC::symbol gEpsPrime

GiNaC::ex gExpr

GiNaC::ex gExprDEps

GiNaC::ex gExprDEpsPrime


Additional Inherited Members

- Public Types inherited from ConstitutiveLaw< doublereal, doublereal >
typedef ConstitutiveLaw
< doublereal, doublereal >
::ErrNotAvailable
Err

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Protected Member Functions inherited from ElasticConstitutiveLaw< doublereal, doublereal >
virtual std::ostream & Restart_int (std::ostream &out) const

- Protected Attributes inherited from ElasticConstitutiveLaw< doublereal, doublereal >
doublereal PreStress

- Protected Attributes inherited from ConstitutiveLaw< doublereal, doublereal >
doublereal Epsilon

doublereal EpsilonPrime

doublereal F

doublereal FDE

doublereal FDEPrime

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from TplDriveOwner< doublereal >
TplDriveCaller< doublereal > * pTplDriveCaller


Detailed Description

template<>
class GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >

Definition at line 931 of file ginaccltp.h.

Constructor & Destructor Documentation

GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >::GiNaCViscoElasticConstitutiveLaw ( const TplDriveCaller< doublereal > *  pDC,
const doublereal PStress,
std::vector< std::string > &  epsilon,
std::vector< std::string > &  epsilonPrime,
std::vector< std::string > &  expression
)

Definition at line 954 of file ginaccltp.h.

References GiNaCViscoElasticConstitutiveLaw< T, Tder >::gEps, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gEpsPrime, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gExpr, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gExprDEps, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gExprDEpsPrime, and GiNaCViscoElasticConstitutiveLaw< T, Tder >::Update().

960 : SymbolicViscoElasticConstitutiveLaw<doublereal, doublereal>(pDC, PStress, epsilon, epsilonPrime, expression),
961 gEps(epsilon[0]), gEpsPrime(epsilonPrime[0])
962 {
965
966  GiNaC::lst l;
967
968  l.append(gEps);
969  l.append(gEpsPrime);
970
971  try {
972  gExpr = GiNaC::ex(expression[0], l);
973  } catch (std::exception& e) {
974  silent_cerr("GiNaCViscoElasticConstitutiveLaw<doublereal, doublereal>: expression parsing failed: " << e.what() << std::endl);
975  throw e;
976  }
977
978  try {
979  gExprDEps = gExpr.diff(gEps);
980  } catch (std::exception& e) {
981  silent_cerr("GiNaCViscoElasticConstitutiveLaw<doublereal, doublereal>: expression differentiation wrt/ Eps failed: " << e.what() << std::endl);
982  throw e;
983  }
984
985  try {
987  } catch (std::exception& e) {
988  silent_cerr("GiNaCViscoElasticConstitutiveLaw<doublereal, doublereal>: expression differentiation wrt/ EpsPrime failed: " << e.what() << std::endl);
989  throw e;
990  }
991
992  silent_cout("\tGiNaCViscoElasticConstitutiveLaw:" << std::endl
993  << "\t\tEps: \"" << gEps << "\"" << std::endl
994  << "\t\tEpsPrime: \"" << gEpsPrime << "\"" << std::endl
995  << "\t\tConstitutive law: \"" << gExpr << "\"" << std::endl
996  << "\t\tDer/Eps: \"" << gExprDEps << "\"" << std::endl
997  << "\t\tDer/EpsPrime: \"" << gExprDEpsPrime << "\"" << std::endl);
998
999  // try and evaluate the constitutive law
1000  try {
1002  }
1003  catch (std::exception& e) {
1004  silent_cerr("GiNaCViscoElasticConstitutiveLaw<doublereal, doublereal>::GiNaCViscoElasticConstitutiveLaw: Update() failed (" << e.what() << ")" << std::endl);
1005  throw e;
1006  }
1007 }
virtual void Update(const doublereal &Eps, const doublereal &EpsPrime=0.)
Definition: ginaccltp.h:1057

Here is the call graph for this function:

Definition at line 1009 of file ginaccltp.h.

References NO_OP.

1010 {
1011  NO_OP;
1012 };
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1015 of file ginaccltp.h.

References GiNaCViscoElasticConstitutiveLaw< T, Tder >::gEps, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gEpsPrime, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gExpr, GiNaCViscoElasticConstitutiveLaw< T, Tder >::pCopy(), and SAFENEWWITHCONSTRUCTOR.

1016 {
1018
1019  std::ostringstream eps;
1020  std::ostringstream epsPrime;
1021  std::ostringstream expr;
1022
1023  eps << gEps;
1024  epsPrime << gEpsPrime;
1025  expr << gExpr;
1026
1027  std::vector<std::string> epsilon;
1028  std::vector<std::string> epsilonPrime;
1029  std::vector<std::string> expression;
1030
1031  epsilon.push_back(eps.str());
1032  epsilonPrime.push_back(epsPrime.str());
1033  expression.push_back(expr.str());
1034
1037  cl,
1040  epsilon, epsilonPrime, expression));
1041
1042  return pCL;
1043 }
virtual ConstitutiveLaw< doublereal, doublereal > * pCopy(void) const
Definition: ginaccltp.h:1015
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698

Here is the call graph for this function:

std::ostream & GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >::Restart ( std::ostream &  out) const
virtual

Reimplemented from ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1046 of file ginaccltp.h.

References GiNaCViscoElasticConstitutiveLaw< T, Tder >::gEps, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gEpsPrime, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gExpr, and ElasticConstitutiveLaw< T, Tder >::Restart_int().

1047 {
1048  out << "symbolic elastic isotropic, "
1049  << "epsilon, \"" << gEps
1050  << "epsilon prime, \"" << gEpsPrime
1051  << "\", expression, \"" << gExpr << "\"";
1052
1053  return Restart_int(out);
1054 }
virtual std::ostream & Restart_int(std::ostream &out) const

Here is the call graph for this function:

void GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >::Update ( const doublereal Eps,
const doublereal EpsPrime = 0.
)
virtual

Implements ConstitutiveLaw< doublereal, doublereal >.

Definition at line 1057 of file ginaccltp.h.

References GiNaCViscoElasticConstitutiveLaw< T, Tder >::gEps, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gEpsPrime, TplDriveOwner< T >::Get(), GiNaCViscoElasticConstitutiveLaw< T, Tder >::gExpr, GiNaCViscoElasticConstitutiveLaw< T, Tder >::gExprDEps, and GiNaCViscoElasticConstitutiveLaw< T, Tder >::gExprDEpsPrime.

1060 {
1061  GiNaC::lst l;
1062
1064
1066
1067  l.append(gEps == e);
1068
1070
1071  l.append(gEpsPrime == EpsPrime);
1072
1073  GiNaC::ex f_expr = gExpr.subs(l);
1076  + GiNaC::ex_to<GiNaC::numeric>(f_expr).to_double();
1077
1078  GiNaC::ex f_derEps = gExprDEps.subs(l);
1079  ConstitutiveLaw<doublereal, doublereal>::FDE = GiNaC::ex_to<GiNaC::numeric>(f_derEps).to_double();
1080
1081  GiNaC::ex f_derEpsPrime = gExprDEpsPrime.subs(l);
1082  ConstitutiveLaw<doublereal, doublereal>::FDEPrime = GiNaC::ex_to<GiNaC::numeric>(f_derEpsPrime).to_double();
1083 }
double doublereal
Definition: colamd.c:52
T Get(void) const
Definition: tpldrive.h:113

Here is the call graph for this function:

Member Data Documentation

GiNaC::symbol GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >::gEps
private

Definition at line 934 of file ginaccltp.h.

GiNaC::symbol GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >::gEpsPrime
private

Definition at line 935 of file ginaccltp.h.

Definition at line 937 of file ginaccltp.h.

GiNaC::ex GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >::gExprDEps
private

Definition at line 938 of file ginaccltp.h.

GiNaC::ex GiNaCViscoElasticConstitutiveLaw< doublereal, doublereal >::gExprDEpsPrime
private

Definition at line 939 of file ginaccltp.h.


The documentation for this class was generated from the following file:
