#include <gravity.h>

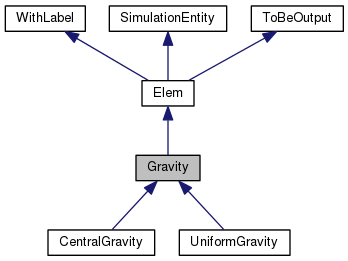

Inheritance diagram for Gravity:

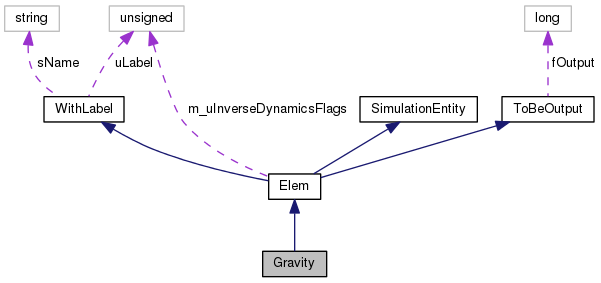

Collaboration diagram for Gravity:

Public Member Functions
	Gravity (flag fOut)

virtual	~Gravity (void)

virtual Elem::Type	GetElemType (void) const

virtual void	WorkSpaceDim (integer piNumRows, integer piNumCols) const

virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual Vec3	GetAcceleration (const Vec3 &) const =0

virtual int	GetNumConnectedNodes (void) const

Public Member Functions inherited from Elem
	Elem (unsigned int uL, flag fOut)

virtual	~Elem (void)

virtual std::ostream &	Restart (std::ostream &out) const =0

virtual unsigned int	iGetNumDof (void) const

virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual DofOrder::Order	GetDofType (unsigned int) const

virtual void	AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool	bInverseDynamics (void) const

void	SetInverseDynamicsFlags (unsigned uIDF)

unsigned	GetInverseDynamicsFlags (void) const

bool	bIsErgonomy (void) const

bool	bIsRightHandSide (void) const

virtual VariableSubMatrixHandler &	AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler &	AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual void	GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")

virtual	~WithLabel (void)

void	PutLabel (unsigned int uL)

void	PutName (const std::string &sN)

unsigned int	GetLabel (void) const

const std::string &	GetName (void) const

Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)

virtual	~SimulationEntity (void)

virtual bool	bIsValidIndex (unsigned int i) const

virtual DofOrder::Order	GetEqType (unsigned int i) const

virtual void	SetValue (DataManager pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints h=0)

virtual Hint *	ParseHint (DataManager pDM, const char s) const

virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int	iGetNumPrivData (void) const

virtual unsigned int	iGetPrivDataIdx (const char *s) const

virtual doublereal	dGetPrivData (unsigned int i) const

virtual std::ostream &	OutputAppend (std::ostream &out) const

virtual void	ReadInitialState (MBDynParser &HP)

Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)

virtual	~ToBeOutput (void)

virtual void	OutputPrepare (OutputHandler &OH)

virtual void	Output (OutputHandler &OH) const

virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag	fToBeOutput (void) const

virtual bool	bToBeOutput (void) const

virtual void	SetOutputFlag (flag f=flag(1))

Additional Inherited Members
Public Types inherited from Elem
enum	Type { UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL, GRAVITY, BODY, JOINT, JOINT_REGULARIZATION, BEAM, PLATE, FORCE, INERTIA, ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC, BULK, LOADABLE, DRIVEN, EXTERNAL, AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT, RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE }

Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints

Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

Protected Attributes inherited from WithLabel
unsigned int	uLabel

std::string	sName

Protected Attributes inherited from ToBeOutput
flag	fOutput

Detailed Description

Definition at line 66 of file gravity.h.

Constructor & Destructor Documentation

Gravity::Gravity ( flag fOut )

Definition at line 41 of file gravity.cc.

References NO_OP.

 : Elem(1, fOut)
 {
         NO_OP;
 }

Gravity::~Gravity ( void )

virtual

Definition at line 47 of file gravity.cc.

References NO_OP.

 {
         NO_OP;
 }

Member Function Documentation

VariableSubMatrixHandler & Gravity::AssJac	(	VariableSubMatrixHandler &	WorkMat,
		doublereal	dCoef,
		const VectorHandler &	XCurr,
		const VectorHandler &	XPrimeCurr
	)

virtual

Implements Elem.

Definition at line 54 of file gravity.cc.

References DEBUGCOUT, and VariableSubMatrixHandler::SetNullMatrix().

 {
         DEBUGCOUT("Entering Gravity::AssJac()" << std::endl);
         WorkMat.SetNullMatrix();
         return WorkMat;
 }

Here is the call graph for this function:

SubVectorHandler & Gravity::AssRes	(	SubVectorHandler &	WorkVec,
		doublereal	dCoef,
		const VectorHandler &	XCurr,
		const VectorHandler &	XPrimeCurr
	)

virtual

Implements Elem.

Reimplemented in UniformGravity.

Definition at line 66 of file gravity.cc.

References DEBUGCOUT, and VectorHandler::Resize().

Referenced by UniformGravity::AssRes().

 {
         DEBUGCOUT("Entering Gravity::AssRes()" << std::endl);
         WorkVec.Resize(0);
         return WorkVec;
 }

Here is the call graph for this function:

virtual Vec3 Gravity::GetAcceleration ( const Vec3 & ) const

pure virtual

Implemented in CentralGravity, and UniformGravity.

Referenced by GravityOwner::bGetGravity().

virtual Elem::Type Gravity::GetElemType ( void ) const

inlinevirtual

Implements Elem.

Definition at line 73 of file gravity.h.

References Elem::GRAVITY.

                                                  {
                 return Elem::GRAVITY;
         };

virtual int Gravity::GetNumConnectedNodes ( void ) const

inlinevirtual

Reimplemented from Elem.

Definition at line 117 of file gravity.h.

                                                             {
                 return 0;
         };

virtual void Gravity::WorkSpaceDim	(	integer *	piNumRows,
		integer *	piNumCols
	)		const

inlinevirtual

Implements Elem.

Definition at line 97 of file gravity.h.

                                                                                 {
                 *piNumRows = 0;
                 *piNumCols = 0;
         };

The documentation for this class was generated from the following files:
