Node2Scalar Class Reference

#include <node.h>

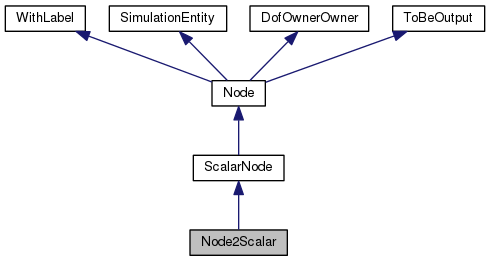

Inheritance diagram for Node2Scalar:

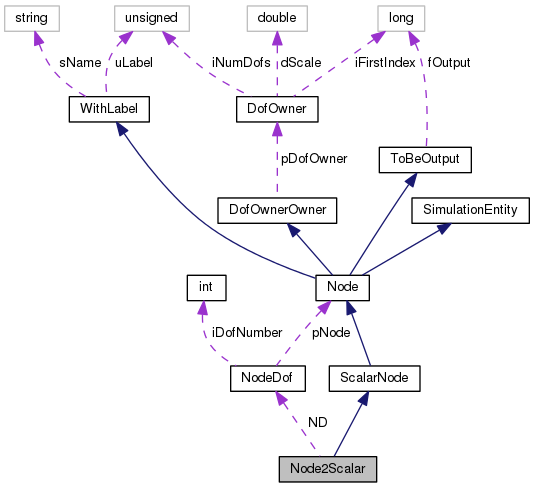

Collaboration diagram for Node2Scalar:

Public Member Functions
	Node2Scalar (const NodeDof &nd)
virtual	~Node2Scalar (void)
const Node *	GetNode (void) const
virtual Node::Type	GetNodeType (void) const
virtual std::ostream &	Restart (std::ostream &out) const
virtual unsigned int	iGetNumDof (void) const
virtual DofOrder::Order	GetDofType (unsigned int i) const
virtual integer	iGetFirstRowIndex (void) const
virtual integer	iGetFirstColIndex (void) const
virtual const doublereal &	dGetDofValue (int iDof, int iOrder=0) const
virtual const doublereal &	dGetDofValuePrev (int iDof, int iOrder=0) const
virtual void	SetDofValue (const doublereal &dValue, unsigned int iDof, unsigned int iOrder=0)
virtual void	SetX (const doublereal &d)
virtual const doublereal &	dGetX (void) const
virtual void	SetXPrime (const doublereal &d)
virtual const doublereal &	dGetXPrime (void) const
Public Member Functions inherited from ScalarNode
	ScalarNode (unsigned int uL, const DofOwner *pDO, flag fOut)
virtual	~ScalarNode (void)
virtual void	Output (OutputHandler &OH) const
virtual void	AfterPredict (VectorHandler &X, VectorHandler &XP)
Public Member Functions inherited from Node
	Node (unsigned int uL, const DofOwner *pDO, flag fOut)
virtual	~Node (void)
const Node *	GetNode (void) const
virtual std::ostream &	DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual std::ostream &	DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const
virtual void	DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const
virtual unsigned int	iGetNumPrivData (void) const
virtual unsigned int	iGetPrivDataIdx (const char *s) const
virtual doublereal	dGetPrivData (unsigned int i) const
Public Member Functions inherited from WithLabel
	WithLabel (unsigned int uL=0, const std::string &sN="")
virtual	~WithLabel (void)
void	PutLabel (unsigned int uL)
void	PutName (const std::string &sN)
unsigned int	GetLabel (void) const
const std::string &	GetName (void) const
Public Member Functions inherited from SimulationEntity
	SimulationEntity (void)
virtual	~SimulationEntity (void)
virtual bool	bIsValidIndex (unsigned int i) const
virtual DofOrder::Order	GetEqType (unsigned int i) const
virtual void	SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *h=0)
virtual Hint *	ParseHint (DataManager *pDM, const char *s) const
virtual void	BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const
virtual void	Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)
virtual void	Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP)
virtual void	AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)
virtual std::ostream &	OutputAppend (std::ostream &out) const
virtual void	ReadInitialState (MBDynParser &HP)
Public Member Functions inherited from DofOwnerOwner
	DofOwnerOwner (const DofOwner *pDO)
virtual	~DofOwnerOwner ()
virtual const DofOwner *	pGetDofOwner (void) const
virtual integer	iGetFirstIndex (void) const
virtual void	SetInitialValue (VectorHandler &X)
Public Member Functions inherited from ToBeOutput
	ToBeOutput (flag fOut=fDefaultOut)
virtual	~ToBeOutput (void)
virtual void	OutputPrepare (OutputHandler &OH)
virtual void	Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const
virtual flag	fToBeOutput (void) const
virtual bool	bToBeOutput (void) const
virtual void	SetOutputFlag (flag f=flag(1))

Protected Attributes
NodeDof	ND
Protected Attributes inherited from WithLabel
unsigned int	uLabel
std::string	sName
Protected Attributes inherited from ToBeOutput
flag	fOutput

Additional Inherited Members
Public Types inherited from Node
enum	Type {   UNKNOWN = -1, ABSTRACT = 0, STRUCTURAL, ELECTRIC,   THERMAL, PARAMETER, HYDRAULIC, LASTNODETYPE }
Public Types inherited from SimulationEntity
typedef std::vector< Hint * >	Hints
Public Types inherited from ToBeOutput
enum	{ OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }
Protected Member Functions inherited from ScalarNode
virtual std::ostream &	Output (std::ostream &out) const

Detailed Description

Definition at line 598 of file node.h.

Constructor & Destructor Documentation

Node2Scalar::Node2Scalar

(

const NodeDof &

nd

)

Definition at line 595 of file node.cc.

References NO_OP.

: ScalarNode(nd.pNode->GetLabel(), nd.pNode->pGetDofOwner(), 0), ND(nd)
{
        NO_OP;
}

Node2Scalar::~Node2Scalar ( void  )

virtual

Definition at line 601 of file node.cc.

References NO_OP.

{
        NO_OP;
}

Member Function Documentation

const doublereal & Node2Scalar::dGetDofValue ( int  iDof, int  iOrder = 0  ) const

virtual

Implements Node.

Definition at line 652 of file node.cc.

References Node::dGetDofValue(), NodeDof::iDofNumber, MBDYN_EXCEPT_ARGS, ND, and NodeDof::pNode.

Referenced by dGetX(), and dGetXPrime().

{
        if (iDof != 1) {
                throw ErrGeneric(MBDYN_EXCEPT_ARGS);
        }
        return ND.pNode->dGetDofValue(ND.iDofNumber + 1, iOrder);
}

Here is the call graph for this function:

const doublereal & Node2Scalar::dGetDofValuePrev ( int  iDof, int  iOrder = 0  ) const

virtual

Implements Node.

Definition at line 663 of file node.cc.

References Node::dGetDofValuePrev(), NodeDof::iDofNumber, MBDYN_EXCEPT_ARGS, ND, and NodeDof::pNode.

{
        if (iDof != 1) {
                throw ErrGeneric(MBDYN_EXCEPT_ARGS);
        }
        return ND.pNode->dGetDofValuePrev(ND.iDofNumber + 1, iOrder);
}

Here is the call graph for this function:

const doublereal & Node2Scalar::dGetX ( void  ) const

inlinevirtual

Implements ScalarNode.

Definition at line 685 of file node.h.

References dGetDofValue().

{
        return dGetDofValue(1, 0);
}

Here is the call graph for this function:

const doublereal & Node2Scalar::dGetXPrime ( void  ) const

inlinevirtual

Implements ScalarNode.

Definition at line 691 of file node.h.

References dGetDofValue().

{
        return dGetDofValue(1, 1);
}

Here is the call graph for this function:

DofOrder::Order Node2Scalar::GetDofType ( unsigned int  i ) const

virtual

Implements SimulationEntity.

Definition at line 631 of file node.cc.

References ASSERT, DofOrder::DIFFERENTIAL, and iGetNumDof().

{
        ASSERT(i < iGetNumDof());
        return DofOrder::DIFFERENTIAL;
}

Here is the call graph for this function:

const Node* Node2Scalar::GetNode ( void  ) const

inline

Definition at line 612 of file node.h.

References ND, and NodeDof::pNode.

{ return ND.pNode; };

Node::Type Node2Scalar::GetNodeType ( void  ) const

virtual

Implements Node.

Definition at line 608 of file node.cc.

References Node::GetNodeType(), ND, and NodeDof::pNode.

{
        return ND.pNode->GetNodeType();
}

Here is the call graph for this function:

integer Node2Scalar::iGetFirstColIndex ( void  ) const

virtual

Reimplemented from Node.

Definition at line 644 of file node.cc.

References NodeDof::iDofNumber, Node::iGetFirstColIndex(), ND, and NodeDof::pNode.

{
        return ND.pNode->iGetFirstColIndex() + ND.iDofNumber;
}

Here is the call graph for this function:

integer Node2Scalar::iGetFirstRowIndex ( void  ) const

virtual

Reimplemented from Node.

Definition at line 639 of file node.cc.

References NodeDof::iDofNumber, Node::iGetFirstRowIndex(), ND, and NodeDof::pNode.

{
        return ND.pNode->iGetFirstRowIndex() + ND.iDofNumber;
}

Here is the call graph for this function:

unsigned int Node2Scalar::iGetNumDof ( void  ) const

virtual

Reimplemented from ScalarNode.

Definition at line 622 of file node.cc.

Referenced by GetDofType().

{
        return 1;
}

std::ostream & Node2Scalar::Restart ( std::ostream &  out ) const

virtual

Implements Node.

Definition at line 615 of file node.cc.

{
        out << "# Node2Scalar: warning, not implemented yet " << std::endl;
        return out;
}

void Node2Scalar::SetDofValue ( const doublereal &  dValue, unsigned int  iDof, unsigned int  iOrder = 0  )

virtual

Implements Node.

Definition at line 674 of file node.cc.

References ASSERT, NodeDof::iDofNumber, MBDYN_EXCEPT_ARGS, ND, and NodeDof::pNode.

Referenced by SetX(), and SetXPrime().

{
        ASSERT(iDof == 1);
        if (iDof == 1) {
                dynamic_cast<Node*>(ND.pNode)->SetDofValue(dValue, ND.iDofNumber + 1, iOrder);
        }
        throw ErrGeneric(MBDYN_EXCEPT_ARGS);
}

void Node2Scalar::SetX ( const doublereal &  d )

virtual

Implements ScalarNode.

Definition at line 689 of file node.cc.

References SetDofValue().

{
        SetDofValue(d, 1, 0);
}

Here is the call graph for this function:

void Node2Scalar::SetXPrime ( const doublereal &  d )

virtual

Implements ScalarNode.

Definition at line 696 of file node.cc.

References SetDofValue().

{
        SetDofValue(d, 1, 1);
}

Here is the call graph for this function:

Member Data Documentation

NodeDof Node2Scalar::ND

protected

Definition at line 601 of file node.h.

Referenced by dGetDofValue(), dGetDofValuePrev(), GetNode(), GetNodeType(), iGetFirstColIndex(), iGetFirstRowIndex(), and SetDofValue().

---

The documentation for this class was generated from the following files:

• node.h
• node.cc
