StrainGageParam Class Reference

#include <j2p.h>

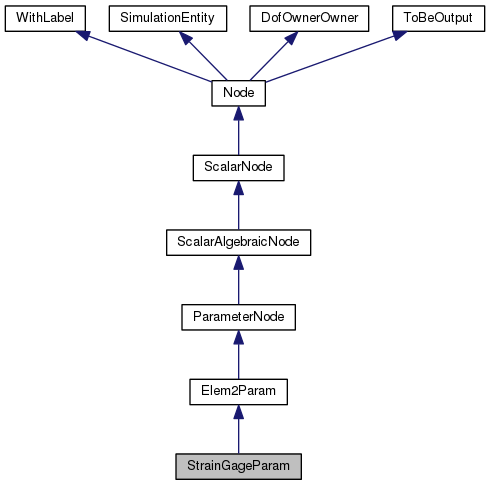

Inheritance diagram for StrainGageParam:

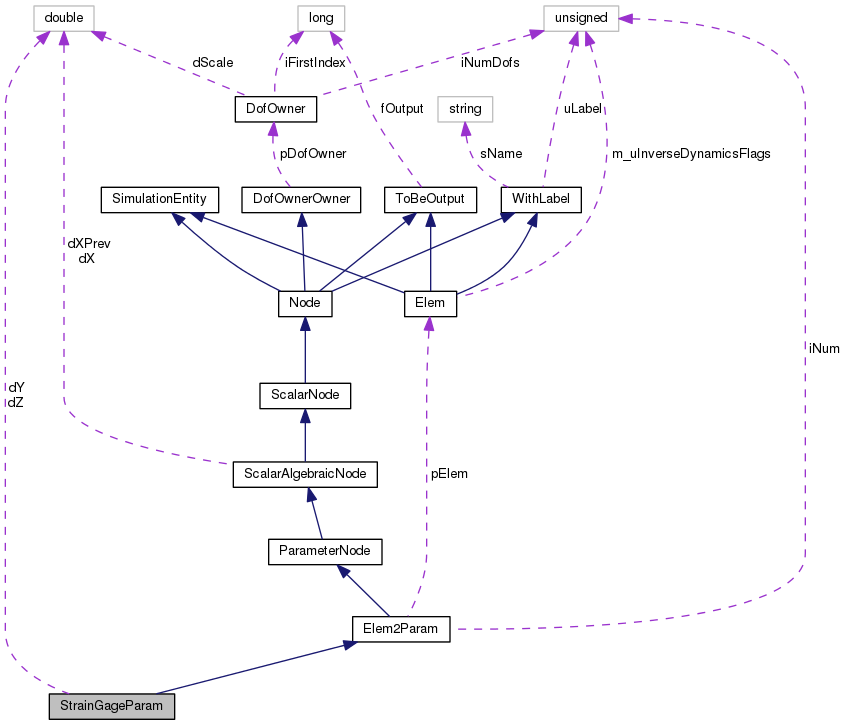

Collaboration diagram for StrainGageParam:

Public Member Functions

 StrainGageParam (unsigned int uL, const DofOwner *pDO, doublereal dy, doublereal dz, flag fOut)

virtual ~StrainGageParam (void)

virtual void Bind (const Elem *pEl, unsigned int i)

virtual std::ostream & Restart (std::ostream &out) const

virtual const doublerealdGetDofValue (int iDof, int iOrder=0) const

virtual const doublerealdGetX (void) const

- Public Member Functions inherited from Elem2Param
 Elem2Param (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~Elem2Param (void)

std::ostream & RestartBind (std::ostream &out) const

virtual void SetDofValue (const doublereal &dValue, unsigned int iDof, unsigned int iOrder=0)

virtual void SetValue (DataManager *pDM, VectorHandler &, VectorHandler &, SimulationEntity::Hints *ph=0)

- Public Member Functions inherited from ParameterNode
 ParameterNode (unsigned int uL, const DofOwner *pDO, doublereal dx, flag fOut)

virtual ~ParameterNode (void)

virtual Node::Type GetNodeType (void) const

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int i) const

virtual void Output (OutputHandler &OH) const

void SetValue (DataManager *pDM, VectorHandler &X, VectorHandler &XP, SimulationEntity::Hints *ph=0)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, const int iOrder)

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual unsigned int iGetNumPrivData (void) const

- Public Member Functions inherited from ScalarAlgebraicNode
 ScalarAlgebraicNode (unsigned int uL, const DofOwner *pDO, doublereal dx, flag fOut)

virtual ~ScalarAlgebraicNode (void)

virtual const doublerealdGetDofValuePrev (int iDof, int iOrder=0) const

virtual void SetX (const doublereal &d)

virtual void SetXPrime (const doublereal &d)

virtual const doublerealdGetXPrime (void) const

virtual void Update (const class VectorHandler &, const class VectorHandler &)

std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

- Public Member Functions inherited from ScalarNode
 ScalarNode (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ScalarNode (void)

- Public Member Functions inherited from Node
 Node (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~Node (void)

const NodeGetNode (void) const

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual integer iGetFirstRowIndex (void) const

virtual integer iGetFirstColIndex (void) const

virtual doublereal dGetPrivData (unsigned int i) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual HintParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwnerpGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

virtual void SetInitialValue (VectorHandler &X)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))


Protected Attributes

doublereal dY

doublereal dZ

- Protected Attributes inherited from Elem2Param
const ElempElem

unsigned int iNum

- Protected Attributes inherited from ScalarAlgebraicNode
doublereal dX

doublereal dXPrev

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput


Additional Inherited Members

- Public Types inherited from Node
enum  Type {
  UNKNOWN = -1, ABSTRACT = 0, STRUCTURAL, ELECTRIC,
  THERMAL, PARAMETER, HYDRAULIC, LASTNODETYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Protected Member Functions inherited from ScalarAlgebraicNode
virtual std::ostream & Output (std::ostream &out) const


Detailed Description

Definition at line 101 of file j2p.h.

Constructor & Destructor Documentation

StrainGageParam::StrainGageParam ( unsigned int  uL,
const DofOwner pDO,
doublereal  dy,
doublereal  dz,
flag  fOut
)

Definition at line 134 of file j2p.cc.

References NO_OP.

136 : Elem2Param(uL, pDO, fOut), dY(dy), dZ(dz)
137 {
138  NO_OP;
139 }
#define NO_OP
Definition: myassert.h:74
doublereal dY
Definition: j2p.h:103
Elem2Param(unsigned int uL, const DofOwner *pDO, flag fOut)
Definition: j2p.cc:40
doublereal dZ
Definition: j2p.h:104
StrainGageParam::~StrainGageParam ( void  )
virtual

Definition at line 141 of file j2p.cc.

References NO_OP.

142 {
143  NO_OP;
144 }
#define NO_OP
Definition: myassert.h:74

Member Function Documentation

void StrainGageParam::Bind ( const Elem pEl,
unsigned int  i
)
virtual

Reimplemented from Elem2Param.

Definition at line 147 of file j2p.cc.

References ASSERT, Elem::BEAM, Elem2Param::Bind(), Elem::GetElemType(), ParameterNode::iGetNumPrivData(), SimulationEntity::iGetPrivDataIdx(), and MBDYN_EXCEPT_ARGS.

148 {
149  ASSERT(pEl != 0);
150  if (pEl->GetElemType() != Elem::BEAM) {
151  silent_cerr("StrainGageParam::Bind(): must bind to a beam"
152  << std::endl);
154  }
155
156  /* Nota: ora i == 1 o 2 per punto di valutazione I o II */
157  const char *s;
158  switch (i) {
159  case 1:
160  s = "pI.ex";
161  break;
162
163  case 2:
164  s = "pII.ex";
165  break;
166
167  default:
169  }
170
171  unsigned int idx = pEl->iGetPrivDataIdx(s);
172  ASSERT(idx > 0);
173  ASSERT(idx <= pEl->iGetNumPrivData());
174
175  Elem2Param::Bind(pEl, idx);
176 }
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
virtual unsigned int iGetPrivDataIdx(const char *s) const
Definition: simentity.cc:142
virtual Elem::Type GetElemType(void) const =0
virtual unsigned int iGetNumPrivData(void) const
Definition: node.h:563
virtual void Bind(const Elem *pEl, unsigned int i)
Definition: j2p.cc:53
#define ASSERT(expression)
Definition: colamd.c:977

Here is the call graph for this function:

const doublereal & StrainGageParam::dGetDofValue ( int  iDof,
int  iOrder = 0
) const
inlinevirtual

Reimplemented from Elem2Param.

Definition at line 129 of file j2p.h.

References ASSERT, and dGetX().

130 {
131  ASSERT(iDof == 1);
132  ASSERT(iOrder == 0);
133  return dGetX();
134 }
#define ASSERT(expression)
Definition: colamd.c:977
virtual const doublereal & dGetX(void) const
Definition: j2p.h:140

Here is the call graph for this function:

const doublereal & StrainGageParam::dGetX ( void  ) const
inlinevirtual

Reimplemented from Elem2Param.

Definition at line 140 of file j2p.h.

References SimulationEntity::dGetPrivData(), ScalarAlgebraicNode::dX, dY, dZ, Elem2Param::iNum, and Elem2Param::pElem.

Referenced by dGetDofValue().

141 {
142  unsigned int i = iNum - 1;
143
144  dX = pElem->dGetPrivData(i + 1)
145  + dZ*pElem->dGetPrivData(i + 5)
146  - dY*pElem->dGetPrivData(i + 6);
147
148  return dX;
149 }
doublereal dX
Definition: node.h:405
const Elem * pElem
Definition: j2p.h:42
unsigned int iNum
Definition: j2p.h:43
doublereal dY
Definition: j2p.h:103
virtual doublereal dGetPrivData(unsigned int i) const
Definition: simentity.cc:149
doublereal dZ
Definition: j2p.h:104

Here is the call graph for this function:

std::ostream & StrainGageParam::Restart ( std::ostream &  out) const
virtual

Reimplemented from Elem2Param.

Definition at line 180 of file j2p.cc.

181 {
182  return out << "StrainGageParam is not implemented yet" << std::endl;
183 }

Member Data Documentation

doublereal StrainGageParam::dY
protected

Definition at line 103 of file j2p.h.

Referenced by dGetX().

doublereal StrainGageParam::dZ
protected

Definition at line 104 of file j2p.h.

Referenced by dGetX().


The documentation for this class was generated from the following files:
