InPlaneContactJoint Class Reference

#include <inplcntj.h>

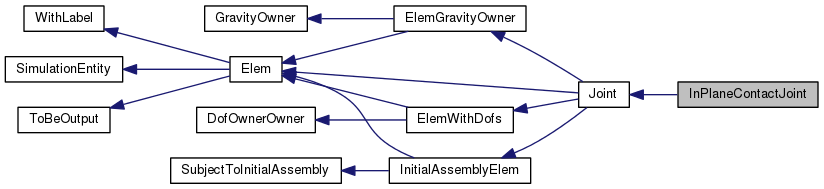

Inheritance diagram for InPlaneContactJoint:
Inheritance graph
[legend]

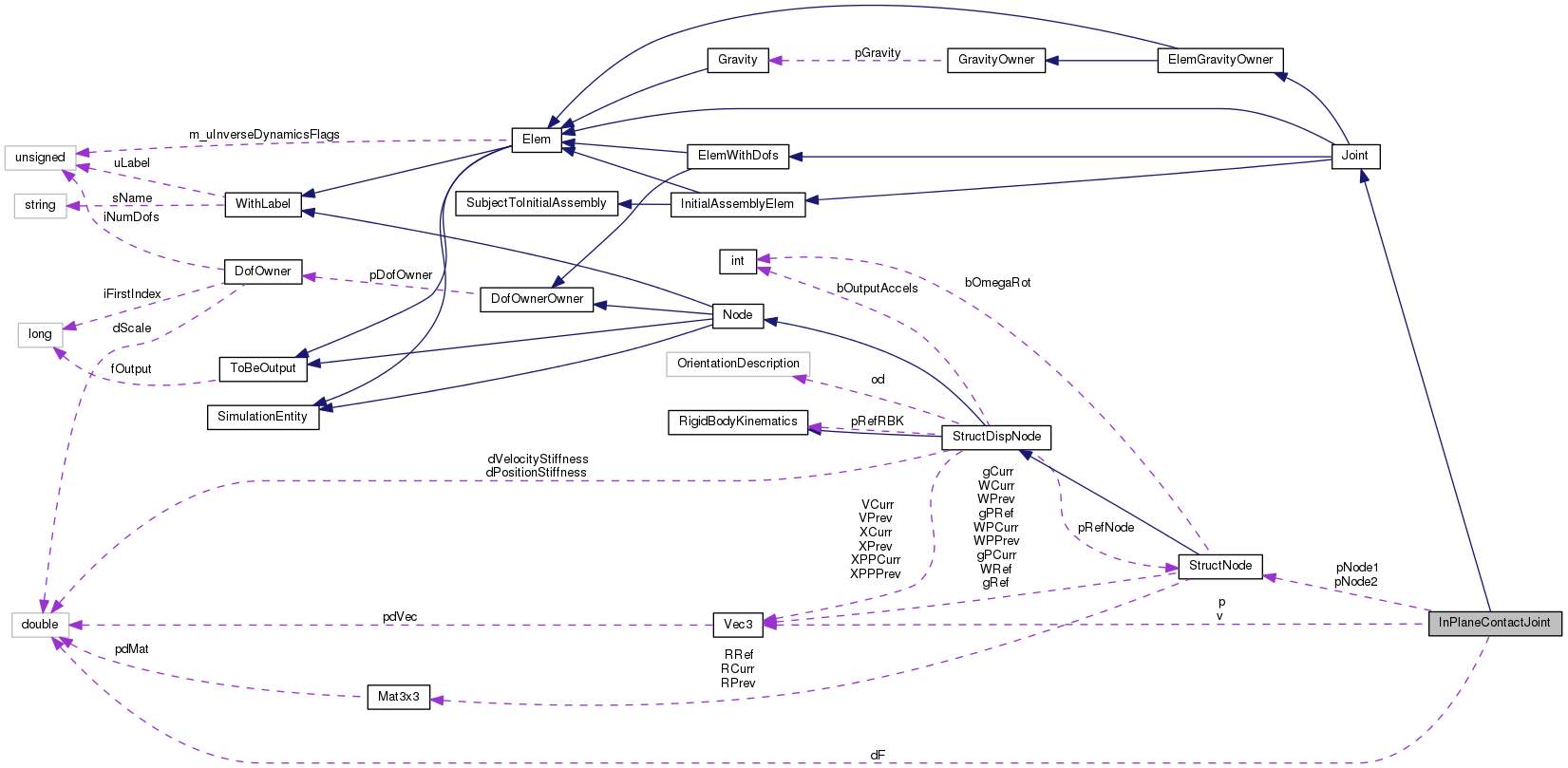

Collaboration diagram for InPlaneContactJoint:
Collaboration graph
[legend]

Public Member Functions

 InPlaneContactJoint (unsigned int uL, const DofOwner *pDO)

 InPlaneContactJoint (unsigned int uL, const DofOwner *pDO, const StructNode *pN1, const StructNode *pN2, const Vec3 &vTmp, const Vec3 &pTmp)

 ~InPlaneContactJoint (void)

virtual Joint::Type GetJointType (void) const

virtual std::ostream & Restart (std::ostream &out) const

virtual unsigned int iGetNumDof (void) const

virtual DofOrder::Order GetDofType (unsigned int i) const

virtual void WorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

SubVectorHandler & AssRes (SubVectorHandler &WorkVec, doublereal dCoef, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void Output (OutputHandler &OH) const

virtual unsigned int iGetInitialNumDof (void) const

virtual void InitialWorkSpaceDim (integer *piNumRows, integer *piNumCols) const

VariableSubMatrixHandler & InitialAssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

SubVectorHandler & InitialAssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr)

virtual void SetInitialValue (VectorHandler &X)

virtual void GetConnectedNodes (std::vector< const Node * > &connectedNodes) const

- Public Member Functions inherited from Joint
 Joint (unsigned int uL, const DofOwner *pD, flag fOut)

virtual ~Joint (void)

virtual Elem::Type GetElemType (void) const

std::ostream & Output (std::ostream &out, const char *sJointName, unsigned int uLabel, const Vec3 &FLocal, const Vec3 &MLocal, const Vec3 &FGlobal, const Vec3 &MGlobal) const

virtual void SetValue (DataManager *pDM, VectorHandler &, VectorHandler &, SimulationEntity::Hints *ph=0)

virtual void Update (const VectorHandler &XCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

bool bIsPrescribedMotion (void) const

bool bIsTorque (void) const

- Public Member Functions inherited from Elem
 Elem (unsigned int uL, flag fOut)

virtual ~Elem (void)

virtual std::ostream & DescribeDof (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeDof (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual std::ostream & DescribeEq (std::ostream &out, const char *prefix="", bool bInitial=false) const

virtual void DescribeEq (std::vector< std::string > &desc, bool bInitial=false, int i=-1) const

virtual void AssMats (VariableSubMatrixHandler &WorkMatA, VariableSubMatrixHandler &WorkMatB, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual bool bInverseDynamics (void) const

void SetInverseDynamicsFlags (unsigned uIDF)

unsigned GetInverseDynamicsFlags (void) const

bool bIsErgonomy (void) const

bool bIsRightHandSide (void) const

virtual VariableSubMatrixHandler & AssJac (VariableSubMatrixHandler &WorkMat, const VectorHandler &XCurr)

virtual SubVectorHandler & AssRes (SubVectorHandler &WorkVec, const VectorHandler &XCurr, const VectorHandler &XPrimeCurr, const VectorHandler &XPrimePrimeCurr, InverseDynamics::Order iOrder=InverseDynamics::INVERSE_DYNAMICS)

virtual int GetNumConnectedNodes (void) const

- Public Member Functions inherited from WithLabel
 WithLabel (unsigned int uL=0, const std::string &sN="")

virtual ~WithLabel (void)

void PutLabel (unsigned int uL)

void PutName (const std::string &sN)

unsigned int GetLabel (void) const

const std::string & GetName (void) const

- Public Member Functions inherited from SimulationEntity
 SimulationEntity (void)

virtual ~SimulationEntity (void)

virtual bool bIsValidIndex (unsigned int i) const

virtual DofOrder::Order GetEqType (unsigned int i) const

virtual Hint * ParseHint (DataManager *pDM, const char *s) const

virtual void BeforePredict (VectorHandler &, VectorHandler &, VectorHandler &, VectorHandler &) const

virtual void AfterPredict (VectorHandler &X, VectorHandler &XP)

virtual void Update (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void DerivativesUpdate (const VectorHandler &XCurr, const VectorHandler &XPrimeCurr)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP)

virtual void AfterConvergence (const VectorHandler &X, const VectorHandler &XP, const VectorHandler &XPP)

virtual unsigned int iGetNumPrivData (void) const

virtual unsigned int iGetPrivDataIdx (const char *s) const

virtual doublereal dGetPrivData (unsigned int i) const

virtual std::ostream & OutputAppend (std::ostream &out) const

virtual void ReadInitialState (MBDynParser &HP)

- Public Member Functions inherited from ToBeOutput
 ToBeOutput (flag fOut=fDefaultOut)

virtual ~ToBeOutput (void)

virtual void OutputPrepare (OutputHandler &OH)

virtual void Output (OutputHandler &OH, const VectorHandler &X, const VectorHandler &XP) const

virtual flag fToBeOutput (void) const

virtual bool bToBeOutput (void) const

virtual void SetOutputFlag (flag f=flag(1))

- Public Member Functions inherited from ElemGravityOwner
 ElemGravityOwner (unsigned int uL, flag fOut)

virtual ~ElemGravityOwner (void)

virtual doublereal dGetM (void) const

Vec3 GetS (void) const

Mat3x3 GetJ (void) const

Vec3 GetB (void) const

Vec3 GetG (void) const

- Public Member Functions inherited from GravityOwner
 GravityOwner (void)

virtual ~GravityOwner (void)

void PutGravity (const Gravity *pG)

virtual bool bGetGravity (const Vec3 &X, Vec3 &Acc) const

- Public Member Functions inherited from ElemWithDofs
 ElemWithDofs (unsigned int uL, const DofOwner *pDO, flag fOut)

virtual ~ElemWithDofs (void)

- Public Member Functions inherited from DofOwnerOwner
 DofOwnerOwner (const DofOwner *pDO)

virtual ~DofOwnerOwner ()

virtual const DofOwner * pGetDofOwner (void) const

virtual integer iGetFirstIndex (void) const

- Public Member Functions inherited from InitialAssemblyElem
 InitialAssemblyElem (unsigned int uL, flag fOut)

virtual ~InitialAssemblyElem (void)

- Public Member Functions inherited from SubjectToInitialAssembly
 SubjectToInitialAssembly (void)

virtual ~SubjectToInitialAssembly (void)


Private Attributes

const StructNode * pNode1

const StructNode * pNode2

Vec3 v

Vec3 p

doublereal dF


Additional Inherited Members

- Public Types inherited from Joint
enum  Type {
  UNKNOWN = -1, DISTANCE = 0, DISTANCEWITHOFFSET, CLAMP,
  SPHERICALHINGE, PIN, UNIVERSALHINGE, UNIVERSALROTATION,
  UNIVERSALPIN, PLANEHINGE, PLANEROTATION, PLANEPIN,
  AXIALROTATION, PLANEDISP, PLANEDISPPIN, INPLANE,
  INPLANECONTACT, J_INLINE, ROD, RODBEZIER,
  DEFORMABLEHINGE, DEFORMABLEDISPJOINT, DEFORMABLEJOINT, DEFORMABLEAXIALJOINT,
  VISCOUSBODY, LINEARVELOCITY, ANGULARVELOCITY, LINEARACCELERATION,
  ANGULARACCELERATION, PRISMATIC, DRIVEHINGE, DRIVEDISP,
  DRIVEDISPPIN, IMPOSEDORIENTATION, IMPOSEDDISP, IMPOSEDDISPPIN,
  IMPOSEDKINEMATICS, BEAMSLIDER, BRAKE, GIMBAL,
  POINT_SURFACE_CONTACT, TOTALJOINT, TOTALPINJOINT, TOTALEQUATION,
  TOTALREACTION, MODAL, SCREWJOINT, LASTJOINTTYPE
}

- Public Types inherited from Elem
enum  Type {
  UNKNOWN = -1, AIRPROPERTIES = 0, INDUCEDVELOCITY, AUTOMATICSTRUCTURAL,
  GRAVITY, BODY, JOINT, JOINT_REGULARIZATION,
  BEAM, PLATE, FORCE, INERTIA,
  ELECTRICBULK, ELECTRIC, THERMAL, HYDRAULIC,
  BULK, LOADABLE, DRIVEN, EXTERNAL,
  AEROMODAL, AERODYNAMIC, GENEL, SOCKETSTREAM_OUTPUT,
  RTAI_OUTPUT = SOCKETSTREAM_OUTPUT, LASTELEMTYPE
}

- Public Types inherited from SimulationEntity
typedef std::vector< Hint * > Hints

- Public Types inherited from ToBeOutput
enum  { OUTPUT = 0x1U, OUTPUT_MASK = 0xFU, OUTPUT_PRIVATE = 0x10U, OUTPUT_PRIVATE_MASK = ~OUTPUT_MASK }

- Protected Member Functions inherited from Joint
virtual void OutputPrepare_int (const std::string &type, OutputHandler &OH, std::string &name)

- Protected Member Functions inherited from ElemGravityOwner
virtual Vec3 GetS_int (void) const

virtual Mat3x3 GetJ_int (void) const

virtual Vec3 GetB_int (void) const

virtual Vec3 GetG_int (void) const

- Protected Attributes inherited from WithLabel
unsigned int uLabel

std::string sName

- Protected Attributes inherited from ToBeOutput
flag fOutput

- Protected Attributes inherited from GravityOwner
Gravity * pGravity


Detailed Description

Definition at line 51 of file inplcntj.h.

Constructor & Destructor Documentation

InPlaneContactJoint::InPlaneContactJoint ( unsigned int  uL,
const DofOwner *  pDO
)
InPlaneContactJoint::InPlaneContactJoint ( unsigned int  uL,
const DofOwner *  pDO,
const StructNode *  pN1,
const StructNode *  pN2,
const Vec3 &  vTmp,
const Vec3 &  pTmp
)
InPlaneContactJoint::~InPlaneContactJoint ( void  )

Member Function Documentation

VariableSubMatrixHandler& InPlaneContactJoint::AssJac ( VariableSubMatrixHandler &  WorkMat,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

SubVectorHandler& InPlaneContactJoint::AssRes ( SubVectorHandler &  WorkVec,
doublereal  dCoef,
const VectorHandler &  XCurr,
const VectorHandler &  XPrimeCurr
)
virtual

Implements Elem.

virtual void InPlaneContactJoint::GetConnectedNodes ( std::vector< const Node * > &  connectedNodes) const
inlinevirtual

Reimplemented from Elem.

Definition at line 124 of file inplcntj.h.

References pNode1, and pNode2.

124  {
125  connectedNodes.resize(2);
126  connectedNodes[0] = pNode1;
127  connectedNodes[1] = pNode2;
128  };
InPlaneContactJoint::pNode1
const StructNode * pNode1
Definition: inplcntj.h:53
InPlaneContactJoint::pNode2
const StructNode * pNode2
Definition: inplcntj.h:54
virtual DofOrder::Order InPlaneContactJoint::GetDofType ( unsigned int  i) const
inlinevirtual

Reimplemented from Elem.

Definition at line 81 of file inplcntj.h.

References DofOrder::ALGEBRAIC, and ASSERT.

81  {
82  ASSERT(i >= 0 && i < 1);
83  return DofOrder::ALGEBRAIC;
84  };
ASSERT
#define ASSERT(expression)
Definition: colamd.c:977
virtual Joint::Type InPlaneContactJoint::GetJointType ( void  ) const
inlinevirtual

Implements Joint.

Definition at line 71 of file inplcntj.h.

References Joint::INPLANECONTACT.

72  { return Joint::INPLANECONTACT; };
virtual unsigned int InPlaneContactJoint::iGetInitialNumDof ( void  ) const
inlinevirtual

Implements SubjectToInitialAssembly.

Definition at line 105 of file inplcntj.h.

105 { return 2; };
virtual unsigned int InPlaneContactJoint::iGetNumDof ( void  ) const
inlinevirtual

Reimplemented from Elem.

Definition at line 77 of file inplcntj.h.

77  {
78  return 1;
79  };
VariableSubMatrixHandler& InPlaneContactJoint::InitialAssJac ( VariableSubMatrixHandler &  WorkMat,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

SubVectorHandler& InPlaneContactJoint::InitialAssRes ( SubVectorHandler &  WorkVec,
const VectorHandler &  XCurr
)
virtual

Implements SubjectToInitialAssembly.

virtual void InPlaneContactJoint::InitialWorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
inlinevirtual

Implements SubjectToInitialAssembly.

Definition at line 106 of file inplcntj.h.

108  { *piNumRows = 26; *piNumCols = 26; };
virtual void InPlaneContactJoint::Output ( OutputHandler &  OH) const
virtual

Reimplemented from ToBeOutput.

virtual std::ostream& InPlaneContactJoint::Restart ( std::ostream &  out) const
virtual

Reimplemented from Joint.

virtual void InPlaneContactJoint::SetInitialValue ( VectorHandler &  X)
virtual

Initialize state vector used in initial assembly. May set internal states of the element. Do not rely on being always called, because initial assembly could be implicitly or explicitly skipped

Reimplemented from Joint.

virtual void InPlaneContactJoint::WorkSpaceDim ( integer *  piNumRows,
integer *  piNumCols
) const
inlinevirtual

Implements Elem.

Definition at line 86 of file inplcntj.h.

86  {
87  *piNumRows = 13;
88  *piNumCols = 13;
89  };

Member Data Documentation

doublereal InPlaneContactJoint::dF
private

Definition at line 57 of file inplcntj.h.

Vec3 InPlaneContactJoint::p
private

Definition at line 56 of file inplcntj.h.

const StructNode* InPlaneContactJoint::pNode1
private

Definition at line 53 of file inplcntj.h.

Referenced by GetConnectedNodes().

const StructNode* InPlaneContactJoint::pNode2
private

Definition at line 54 of file inplcntj.h.

Referenced by GetConnectedNodes().

Vec3 InPlaneContactJoint::v
private

Definition at line 55 of file inplcntj.h.

The documentation for this class was generated from the following file:
