tpldrive.h File Reference

#include "drive.h"
#include "matvec3.h"
#include "matvec6.h"

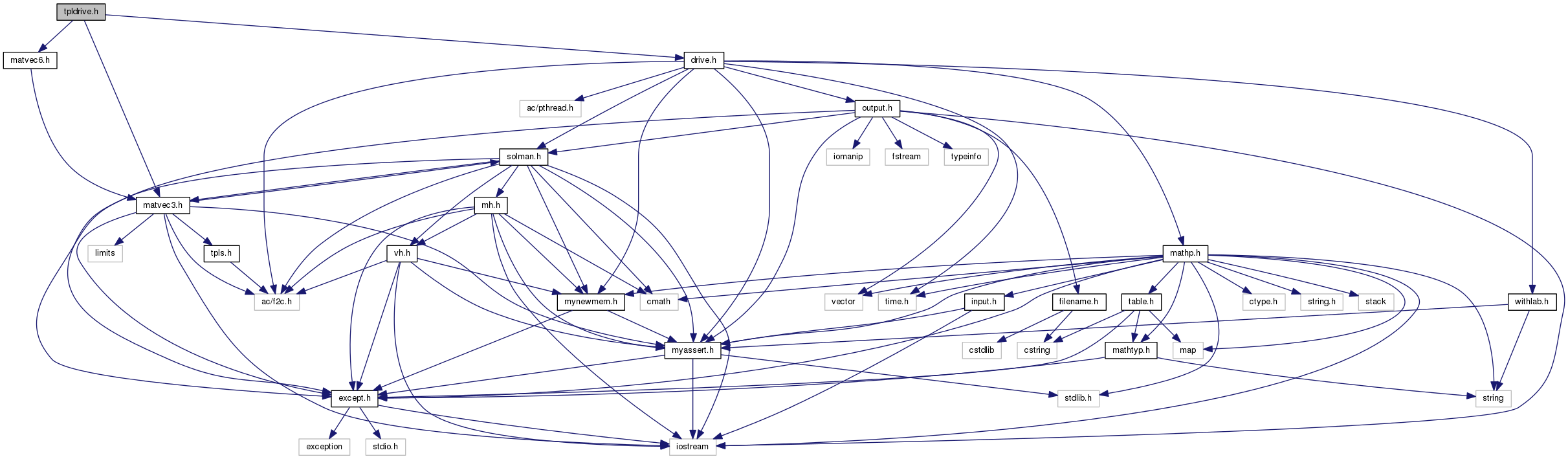

Include dependency graph for tpldrive.h:

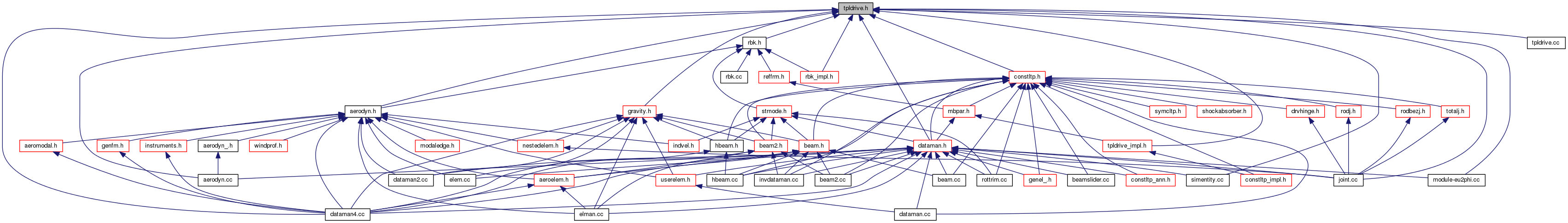

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	TplDriveCaller< T >
class	TplDriveOwner< T >
struct	TplDriveCallerRead< T >

Functions
TplDriveCaller< doublereal > *	ReadDC1D (const DataManager *pDM, MBDynParser &HP)
TplDriveCaller< Vec3 > *	ReadDC3D (const DataManager *pDM, MBDynParser &HP)
TplDriveCaller< Vec6 > *	ReadDC6D (const DataManager *pDM, MBDynParser &HP)
TplDriveCaller< Mat3x3 > *	ReadDC3x3D (const DataManager *pDM, MBDynParser &HP)
TplDriveCaller< Mat6x6 > *	ReadDC6x6D (const DataManager *pDM, MBDynParser &HP)
TplDriveCaller< Vec3 > *	ReadDCVecRel (const DataManager *pDM, MBDynParser &HP, const ReferenceFrame &rf)
TplDriveCaller< Vec3 > *	ReadDCVecAbs (const DataManager *pDM, MBDynParser &HP, const ReferenceFrame &rf)
bool	SetDC1D (const char *name, TplDriveCallerRead< doublereal > *rf)
bool	SetDC3D (const char *name, TplDriveCallerRead< Vec3 > *rf)
bool	SetDC6D (const char *name, TplDriveCallerRead< Vec6 > *rf)
bool	SetDC3x3D (const char *name, TplDriveCallerRead< Mat3x3 > *rf)
bool	SetDC6x6D (const char *name, TplDriveCallerRead< Mat6x6 > *rf)
void	InitTplDC (void)
void	DestroyTplDC (void)

Function Documentation

void DestroyTplDC

(

void

)

Definition at line 980 of file tpldrive_impl.cc.

References DC1DFuncMap, DC3DFuncMap, DC3x3DFuncMap, DC6DFuncMap, DC6x6DFuncMap, done, and MBDYN_EXCEPT_ARGS.

Referenced by MBDynParser::~MBDynParser().

{
        if (::done == 0) {
                silent_cerr("DestroyTplDC() called once too many" << std::endl);
                throw ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        if (--::done > 0) {
                return;
        }

        /* free stuff */
        for (DC1DFuncMapType::iterator i = DC1DFuncMap.begin(); i != DC1DFuncMap.end(); ++i) {
                delete i->second;
        }
        DC1DFuncMap.clear();

        for (DC3DFuncMapType::iterator i = DC3DFuncMap.begin(); i != DC3DFuncMap.end(); ++i) {
                delete i->second;
        }
        DC3DFuncMap.clear();

        for (DC6DFuncMapType::iterator i = DC6DFuncMap.begin(); i != DC6DFuncMap.end(); ++i) {
                delete i->second;
        }
        DC6DFuncMap.clear();

        for (DC3x3DFuncMapType::iterator i = DC3x3DFuncMap.begin(); i != DC3x3DFuncMap.end(); ++i) {
                delete i->second;
        }
        DC3x3DFuncMap.clear();

        for (DC6x6DFuncMapType::iterator i = DC6x6DFuncMap.begin(); i != DC6x6DFuncMap.end(); ++i) {
                delete i->second;
        }
        DC6x6DFuncMap.clear();
}

void InitTplDC

(

void

)

Definition at line 931 of file tpldrive_impl.cc.

References done, SetDC1D(), SetDC3D(), SetDC3x3D(), SetDC6D(), and SetDC6x6D().

Referenced by MBDynParser::MBDynParser().

{
        if (::done++ > 0) {
                return;
        }

        /* null */
        SetDC1D("null", new NullTDCR<doublereal>);
        SetDC3D("null", new NullTDCR<Vec3>);
        SetDC6D("null", new NullTDCR<Vec6>);

        SetDC3x3D("null", new NullTDCR<Mat3x3>);
        SetDC6x6D("null", new NullTDCR<Mat6x6>);

        /* zero (deprecated) */
        SetDC1D("zero", new ZeroTDCR<doublereal>);
        SetDC3D("zero", new ZeroTDCR<Vec3>);
        SetDC6D("zero", new ZeroTDCR<Vec6>);

        SetDC3x3D("zero", new ZeroTDCR<Mat3x3>);
        SetDC6x6D("zero", new ZeroTDCR<Mat6x6>);

        /* single */
        SetDC1D("single", new SingleTDCR<doublereal>);
        SetDC3D("single", new SingleTDCR<Vec3>);
        SetDC6D("single", new SingleTDCR<Vec6>);

        SetDC3x3D("single", new SingleTDCR<Mat3x3>);
        SetDC6x6D("single", new SingleTDCR<Mat6x6>);

        /* component */
        /* in the scalar case, "single" and "component" are identical */
        SetDC1D("component", new SingleTDCR<doublereal>);
        SetDC3D("component", new CompTDCR<Vec3>);
        SetDC6D("component", new CompTDCR<Vec6>);

        SetDC3x3D("component", new CompTDCR<Mat3x3>);
        SetDC6x6D("component", new CompTDCR<Mat6x6>);

        /* array */
        SetDC1D("array", new ArrayTDCR<doublereal>);
        SetDC3D("array", new ArrayTDCR<Vec3>);
        SetDC6D("array", new ArrayTDCR<Vec6>);

        SetDC3x3D("array", new ArrayTDCR<Mat3x3>);
        SetDC6x6D("array", new ArrayTDCR<Mat6x6>);
}

Here is the call graph for this function:

TplDriveCaller<doublereal>* ReadDC1D	(	const DataManager *	pDM,
		MBDynParser &	HP
	)

Definition at line 812 of file tpldrive_impl.cc.

References DC1DFuncMap, func(), IncludeParser::GetLineData(), HighParser::IsWord(), and MBDYN_EXCEPT_ARGS.

Referenced by MBDynParser::GetTplDriveCaller().

{
        const char *s = HP.IsWord(DC1DWordSet);
        if (s == 0) {
                s = "single";
        }

        DC1DFuncMapType::iterator func = DC1DFuncMap.find(std::string(s));
        if (func == DC1DFuncMap.end()) {
                silent_cerr("unknown template drive caller 1D type \"" << s << "\" "
                        "at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        return func->second->Read(pDM, HP);
}

Here is the call graph for this function:

TplDriveCaller<Vec3>* ReadDC3D	(	const DataManager *	pDM,
		MBDynParser &	HP
	)

Definition at line 830 of file tpldrive_impl.cc.

References DC3DFuncMap, func(), IncludeParser::GetLineData(), HighParser::IsWord(), and MBDYN_EXCEPT_ARGS.

Referenced by MBDynParser::GetTplDriveCaller(), ReadAirstreamData(), DataManager::ReadControl(), ReadForce(), and ReadGravity().

{
        const char *s = HP.IsWord(DC3DWordSet);
        if (s == 0) {
                s = "single";
        }

        DC3DFuncMapType::iterator func = DC3DFuncMap.find(std::string(s));
        if (func == DC3DFuncMap.end()) {
                silent_cerr("unknown template drive caller 3D type \"" << s << "\" "
                        "at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        return func->second->Read(pDM, HP);
}

Here is the call graph for this function:

TplDriveCaller<Mat3x3>* ReadDC3x3D	(	const DataManager *	pDM,
		MBDynParser &	HP
	)

Definition at line 866 of file tpldrive_impl.cc.

References DC3x3DFuncMap, func(), IncludeParser::GetLineData(), HighParser::IsWord(), and MBDYN_EXCEPT_ARGS.

Referenced by MBDynParser::GetTplDriveCaller().

{
        const char *s = HP.IsWord(DC3x3DWordSet);
        if (s == 0) {
                s = "single";
        }

        DC3x3DFuncMapType::iterator func = DC3x3DFuncMap.find(std::string(s));
        if (func == DC3x3DFuncMap.end()) {
                silent_cerr("unknown template drive caller 3x3D type \"" << s << "\" "
                        "at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        return func->second->Read(pDM, HP);
}

Here is the call graph for this function:

TplDriveCaller<Vec6>* ReadDC6D	(	const DataManager *	pDM,
		MBDynParser &	HP
	)

Definition at line 848 of file tpldrive_impl.cc.

References DC6DFuncMap, func(), IncludeParser::GetLineData(), HighParser::IsWord(), and MBDYN_EXCEPT_ARGS.

Referenced by MBDynParser::GetTplDriveCaller().

{
        const char *s = HP.IsWord(DC6DWordSet);
        if (s == 0) {
                s = "single";
        }

        DC6DFuncMapType::iterator func = DC6DFuncMap.find(std::string(s));
        if (func == DC6DFuncMap.end()) {
                silent_cerr("unknown template drive caller 6D type \"" << s << "\" "
                        "at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        return func->second->Read(pDM, HP);
}

Here is the call graph for this function:

TplDriveCaller<Mat6x6>* ReadDC6x6D	(	const DataManager *	pDM,
		MBDynParser &	HP
	)

Definition at line 884 of file tpldrive_impl.cc.

References DC6x6DFuncMap, func(), IncludeParser::GetLineData(), HighParser::IsWord(), and MBDYN_EXCEPT_ARGS.

Referenced by MBDynParser::GetTplDriveCaller().

{
        const char *s = HP.IsWord(DC6x6DWordSet);
        if (s == 0) {
                s = "single";
        }

        DC6x6DFuncMapType::iterator func = DC6x6DFuncMap.find(std::string(s));
        if (func == DC6x6DFuncMap.end()) {
                silent_cerr("unknown template drive caller 6x6D type \"" << s << "\" "
                        "at line " << HP.GetLineData() << std::endl);
                throw DataManager::ErrGeneric(MBDYN_EXCEPT_ARGS);
        }

        return func->second->Read(pDM, HP);
}

Here is the call graph for this function:

TplDriveCaller<Vec3>* ReadDCVecAbs	(	const DataManager *	pDM,
		MBDynParser &	HP,
		const ReferenceFrame &	rf
	)

Definition at line 923 of file tpldrive_impl.cc.

Referenced by ReadStructuralForce().

{
        return ReadDCVec<MBDynParser::VecAbsManip>(pDM, HP, rf);
}

TplDriveCaller<Vec3>* ReadDCVecRel	(	const DataManager *	pDM,
		MBDynParser &	HP,
		const ReferenceFrame &	rf
	)

Definition at line 917 of file tpldrive_impl.cc.

Referenced by ModuleIMUConstraint::ModuleIMUConstraint(), DataManager::ReadControl(), and ReadStructuralForce().

{
        return ReadDCVec<MBDynParser::VecRelManip>(pDM, HP, rf);
}

bool SetDC1D	(	const char *	name,
		TplDriveCallerRead< doublereal > *	rf
	)

Definition at line 771 of file tpldrive_impl.cc.

References DC1DFuncMap.

Referenced by InitTplDC(), and mbdyn_octave_set().

{
        pedantic_cout("registering template drive caller 1D \"" << name << "\""
                << std::endl );
        return DC1DFuncMap.insert(DC1DFuncMapType::value_type(name, rf)).second;
}

bool SetDC3D	(	const char *	name,
		TplDriveCallerRead< Vec3 > *	rf
	)

Definition at line 779 of file tpldrive_impl.cc.

References DC3DFuncMap.

Referenced by InitTplDC(), mbdyn_octave_set(), and module_init().

{
        pedantic_cout("registering template drive caller 3D \"" << name << "\""
                << std::endl );
        return DC3DFuncMap.insert(DC3DFuncMapType::value_type(name, rf)).second;
}

bool SetDC3x3D	(	const char *	name,
		TplDriveCallerRead< Mat3x3 > *	rf
	)

Definition at line 795 of file tpldrive_impl.cc.

References DC3x3DFuncMap.

Referenced by InitTplDC(), and mbdyn_octave_set().

{
        pedantic_cout("registering template drive caller 3x3D \"" << name << "\""
                << std::endl );
        return DC3x3DFuncMap.insert(DC3x3DFuncMapType::value_type(name, rf)).second;
}

bool SetDC6D	(	const char *	name,
		TplDriveCallerRead< Vec6 > *	rf
	)

Definition at line 787 of file tpldrive_impl.cc.

References DC6DFuncMap.

Referenced by InitTplDC(), and mbdyn_octave_set().

{
        pedantic_cout("registering template drive caller 6D \"" << name << "\""
                << std::endl );
        return DC6DFuncMap.insert(DC6DFuncMapType::value_type(name, rf)).second;
}

bool SetDC6x6D	(	const char *	name,
		TplDriveCallerRead< Mat6x6 > *	rf
	)

Definition at line 803 of file tpldrive_impl.cc.

References DC6x6DFuncMap.

Referenced by InitTplDC(), and mbdyn_octave_set().

{
        pedantic_cout("registering template drive caller 6x6D \"" << name << "\""
                << std::endl );
        return DC6x6DFuncMap.insert(DC6x6DFuncMapType::value_type(name, rf)).second;
}
