aeroelem.h File Reference
#include "aerodyn.h"
#include "rotor.h"
#include "beam.h"
#include "beam2.h"
#include "aerodata.h"
#include "gauss.h"
#include "aerod2.h"
#include "shape.h"

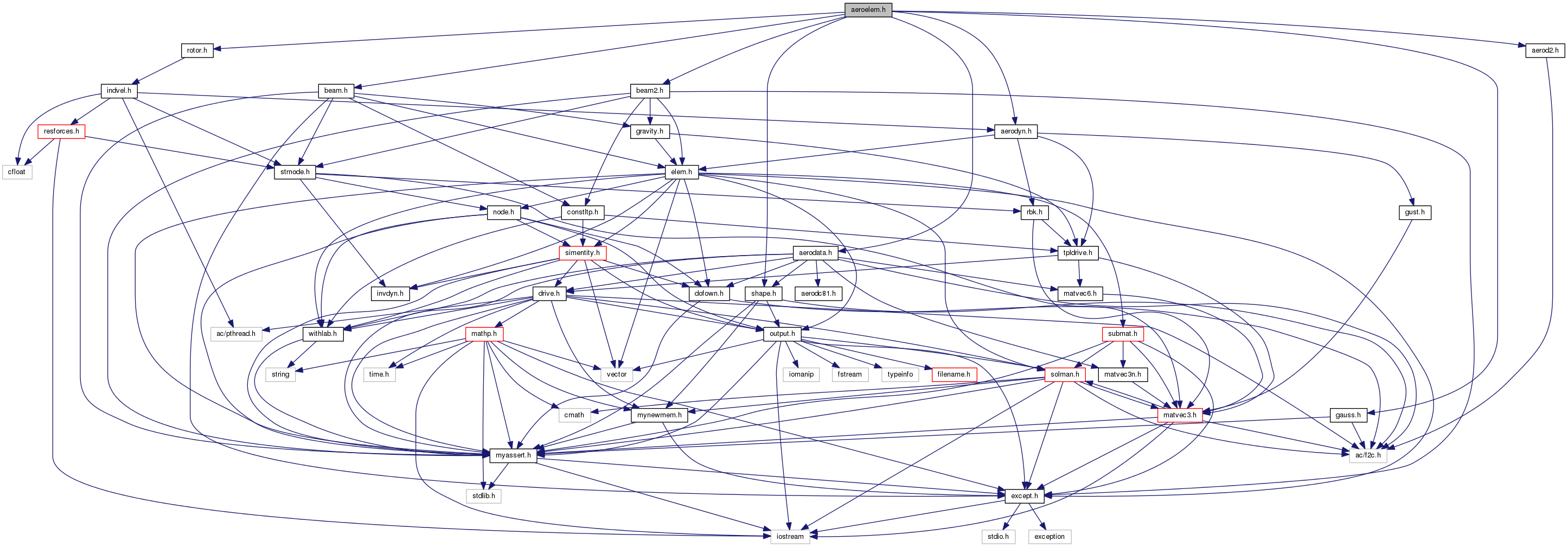

Include dependency graph for aeroelem.h:

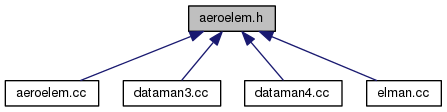

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  AerodynamicOutput

struct  AerodynamicOutput::Aero_output

class  Aerodynamic2DElem< iNN >

class  AerodynamicBody

class  AerodynamicBeam

class  AerodynamicBeam2


Functions

void ReadAerodynamicCustomOutput (DataManager *pDM, MBDynParser &HP, unsigned int uLabel, unsigned &uFlags, OrientationDescription &od)

void ReadOptionalAerodynamicCustomOutput (DataManager *pDM, MBDynParser &HP, unsigned int uLabel, unsigned &uFlags, OrientationDescription &od)

ElemReadAerodynamicBody (DataManager *pDM, MBDynParser &HP, const DofOwner *pDO, unsigned int uLabel)

ElemReadAerodynamicBeam (DataManager *pDM, MBDynParser &HP, const DofOwner *pDO, unsigned int uLabel)

ElemReadAerodynamicBeam2 (DataManager *pDM, MBDynParser &HP, const DofOwner *pDO, unsigned int uLabel)


Function Documentation

Elem* ReadAerodynamicBeam ( DataManager pDM,
MBDynParser HP,
const DofOwner pDO,
unsigned int  uLabel
)

Definition at line 2268 of file aeroelem.cc.

References AerodynamicOutput::AEROD_OUT_NODE, AerodynamicOutput::AEROD_OUT_PGAUSS, AerodynamicOutput::AEROD_OUT_STD, Elem::AERODYNAMIC, ASSERT, bDefaultUseJacobian, Elem::BEAM, DEBUGCOUTFNAME, DEBUGLCOUT, Shape::dGet(), DataManager::fReadOutput(), HighParser::GetInt(), WithLabel::GetLabel(), IncludeParser::GetLineData(), DataManager::GetLogFile(), MBDynParser::GetPosRel(), MBDynParser::GetRotRel(), HighParser::GetYesNoOrBool(), AeroData::iGetNumDof(), HighParser::IsArg(), HighParser::IsKeyWord(), MBDYN_EXCEPT_ARGS, MYDEBUG_INPUT, AerodynamicOutput::OUTPUT_NONE, DataManager::pFindElem(), Beam::pGetNode(), ReadAeroData(), ReadInducedVelocity(), ReadOptionalAerodynamicCustomOutput(), SAFENEWWITHCONSTRUCTOR, UNKNOWN_ORIENTATION_DESCRIPTION, and Write().

Referenced by DataManager::ReadOneElem().

2272 {
2273  DEBUGCOUTFNAME("ReadAerodynamicBeam");
2274
2275  /* Trave */
2276  unsigned int uBeam = (unsigned int)HP.GetInt();
2277
2278  DEBUGLCOUT(MYDEBUG_INPUT, "Linked to beam: " << uBeam << std::endl);
2279
2280  /* verifica di esistenza della trave */
2281  Elem* p = pDM->pFindElem(Elem::BEAM, uBeam);
2282  if (p == 0) {
2283  silent_cerr("Beam3(" << uBeam << ") not defined "
2284  "at line " << HP.GetLineData()
2285  << std::endl);
2287  }
2288  Beam *pBeam = dynamic_cast<Beam *>(p);
2289  if (pBeam == 0) {
2290  silent_cerr("Beam(" << uBeam << ") is not a Beam3 "
2291  "at line " << HP.GetLineData()
2292  << std::endl);
2294  }
2295  ASSERT(pBeam != 0);
2296
2297  /* Eventuale rotore */
2298  InducedVelocity* pIndVel = 0;
2299  bool bPassive(false);
2300  (void)ReadInducedVelocity(pDM, HP, uLabel, "AerodynamicBeam3",
2301  pIndVel, bPassive);
2302
2303  /* Nodo 1: */
2304
2305  /* Offset del corpo aerodinamico rispetto al nodo */
2306  const StructNode* pNode1 = pBeam->pGetNode(1);
2307
2308  ReferenceFrame RF(pNode1);
2309  Vec3 f1(HP.GetPosRel(RF));
2310  DEBUGLCOUT(MYDEBUG_INPUT, "Node 1 offset: " << f1 << std::endl);
2311
2312  Mat3x3 Ra1(HP.GetRotRel(RF));
2314  "Node 1 rotation matrix: " << std::endl << Ra1 << std::endl);
2315
2316  /* Nodo 2: */
2317
2318  /* Offset del corpo aerodinamico rispetto al nodo */
2319  const StructNode* pNode2 = pBeam->pGetNode(2);
2320
2321  RF = ReferenceFrame(pNode2);
2322  Vec3 f2(HP.GetPosRel(RF));
2323  DEBUGLCOUT(MYDEBUG_INPUT, "Node 2 offset: " << f2 << std::endl);
2324
2325  Mat3x3 Ra2(HP.GetRotRel(RF));
2327  "Node 2 rotation matrix: " << std::endl << Ra2 << std::endl);
2328
2329  /* Nodo 3: */
2330
2331  /* Offset del corpo aerodinamico rispetto al nodo */
2332  const StructNode* pNode3 = pBeam->pGetNode(3);
2333
2334  RF = ReferenceFrame(pNode3);
2335  Vec3 f3(HP.GetPosRel(RF));
2336  DEBUGLCOUT(MYDEBUG_INPUT, "Node 3 offset: " << f3 << std::endl);
2337
2338  Mat3x3 Ra3(HP.GetRotRel(RF));
2340  "Node 3 rotation matrix: " << std::endl << Ra3 << std::endl);
2341
2342  Shape* pChord = 0;
2343  Shape* pForce = 0;
2344  Shape* pVelocity = 0;
2345  Shape* pTwist = 0;
2346  Shape* pTipLoss = 0;
2347
2348  integer iNumber = 0;
2349  DriveCaller* pDC = 0;
2350  AeroData* aerodata = 0;
2351
2352  ReadAeroData(pDM, HP, 3,
2353  &pChord, &pForce, &pVelocity, &pTwist, &pTipLoss,
2354  &iNumber, &pDC, &aerodata);
2355
2356  bool bUseJacobian(false);
2357  if (HP.IsKeyWord("jacobian")) {
2358  bUseJacobian = HP.GetYesNoOrBool(bDefaultUseJacobian);
2359  }
2360
2361  if (aerodata->iGetNumDof() > 0 && !bUseJacobian) {
2362  silent_cerr("AerodynamicBeam3(" << uLabel << "): "
2363  "aerodynamic model needs \"jacobian, yes\" at line " << HP.GetLineData()
2364  << std::endl);
2366  }
2367
2369  unsigned uFlags = AerodynamicOutput::OUTPUT_NONE;
2370  ReadOptionalAerodynamicCustomOutput(pDM, HP, uLabel, uFlags, od);
2371
2372  flag fOut = pDM->fReadOutput(HP, Elem::AERODYNAMIC);
2373  if (HP.IsArg()) {
2374  if (HP.IsKeyWord("std")) {
2376  } else if (HP.IsKeyWord("gauss")) {
2378  } else if (HP.IsKeyWord("node")) {
2380  } else {
2381  silent_cerr("AerodynamicBeam3(" << uLabel << "): "
2382  "unknown output mode at line " << HP.GetLineData()
2383  << std::endl);
2385  }
2386
2387  } else if (fOut) {
2389  }
2390  fOut |= uFlags;
2391
2392  Elem* pEl = 0;
2393
2396  AerodynamicBeam(uLabel, pDO, pBeam, pIndVel, bPassive,
2397  f1, f2, f3, Ra1, Ra2, Ra3,
2398  pChord, pForce, pVelocity, pTwist, pTipLoss,
2399  iNumber, aerodata, pDC, bUseJacobian, od, fOut));
2400
2401  /* Se non c'e' il punto e virgola finale */
2402  if (HP.IsArg()) {
2403  silent_cerr("semicolon expected at line "
2404  << HP.GetLineData() << std::endl);
2406  }
2407
2408  std::ostream& out = pDM->GetLogFile();
2409  out << "aero3: " << uLabel;
2410
2411  Vec3 ra1 = Ra1.GetVec(1);
2412  Vec3 ra3 = Ra1.GetVec(3);
2413  doublereal dC = pChord->dGet(-1.);
2414  doublereal dP = pForce->dGet(-1.);
2415  out
2416  << " " << pNode1->GetLabel()
2417  << " ", (f1 + ra1*(dP - dC*3./4.)).Write(out, " ")
2418  << " ", (f1 + ra1*(dP + dC/4.)).Write(out, " ");
2419
2420  ra1 = Ra2.GetVec(1);
2421  ra3 = Ra2.GetVec(3);
2422  dC = pChord->dGet(0.);
2423  dP = pForce->dGet(0.);
2424  out
2425  << " " << pNode2->GetLabel()
2426  << " ", (f2 + ra1*(dP - dC*3./4.)).Write(out, " ")
2427  << " ", (f2 + ra1*(dP + dC/4.)).Write(out, " ");
2428
2429  ra1 = Ra3.GetVec(1);
2430  ra3 = Ra3.GetVec(3);
2431  dC = pChord->dGet(1.);
2432  dP = pForce->dGet(1.);
2433  out
2434  << " " << pNode3->GetLabel()
2435  << " ", (f3 + ra1*(dP - dC*3./4.)).Write(out, " ")
2436  << " ", (f3 + ra1*(dP + dC/4.)).Write(out, " ")
2437  << std::endl;
2438
2439  return pEl;
2440 } /* End of ReadAerodynamicBeam() */
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
Mat3x3 GetRotRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1795
long int flag
Definition: mbdyn.h:43
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Definition: matvec3.h:98
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
virtual integer GetInt(integer iDefval=0)
Definition: parser.cc:1050
std::ostream & Write(std::ostream &out, const FullMatrixHandler &m, const char *s, const char *s2)
Definition: fullmh.cc:376
virtual unsigned int iGetNumDof(void) const
Definition: aerodata.cc:362
OrientationDescription
Definition: matvec3.h:1597
static const bool bDefaultUseJacobian
Definition: aeroelem.cc:159
virtual const StructNode * pGetNode(unsigned int i) const
Definition: beam.cc:1290
void ReadOptionalAerodynamicCustomOutput(DataManager *pDM, MBDynParser &HP, unsigned int uLabel, unsigned &uFlags, OrientationDescription &od)
Definition: aeroelem.cc:1351
virtual bool GetYesNoOrBool(bool bDefval=false)
Definition: parser.cc:1038
Elem * pFindElem(Elem::Type Typ, unsigned int uElem, unsigned int iDeriv) const
Definition: elman.cc:650
static bool ReadInducedVelocity(DataManager *pDM, MBDynParser &HP, unsigned uLabel, const char *sElemType, InducedVelocity *&pIndVel, bool &bPassive)
Definition: aeroelem.cc:1216
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
Definition: beam.h:56
void ReadAeroData(DataManager *pDM, MBDynParser &HP, int iDim, Shape **ppChord, Shape **ppForce, Shape **ppVelocity, Shape **ppTwist, Shape **ppTipLoss, integer *piNumber, DriveCaller **ppDC, AeroData **aerodata)
Definition: aerodata.cc:593
#define ASSERT(expression)
Definition: colamd.c:977
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
virtual bool IsArg(void)
Definition: parser.cc:807
Definition: elem.h:75
virtual doublereal dGet(doublereal d1, doublereal d2=0.) const =0
std::ostream & GetLogFile(void) const
Definition: dataman.h:326
double doublereal
Definition: colamd.c:52
long int integer
Definition: colamd.c:51
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
unsigned int GetLabel(void) const
Definition: withlab.cc:62
#define DEBUGLCOUT(level, msg)
Definition: myassert.h:244
Definition: shape.h:50

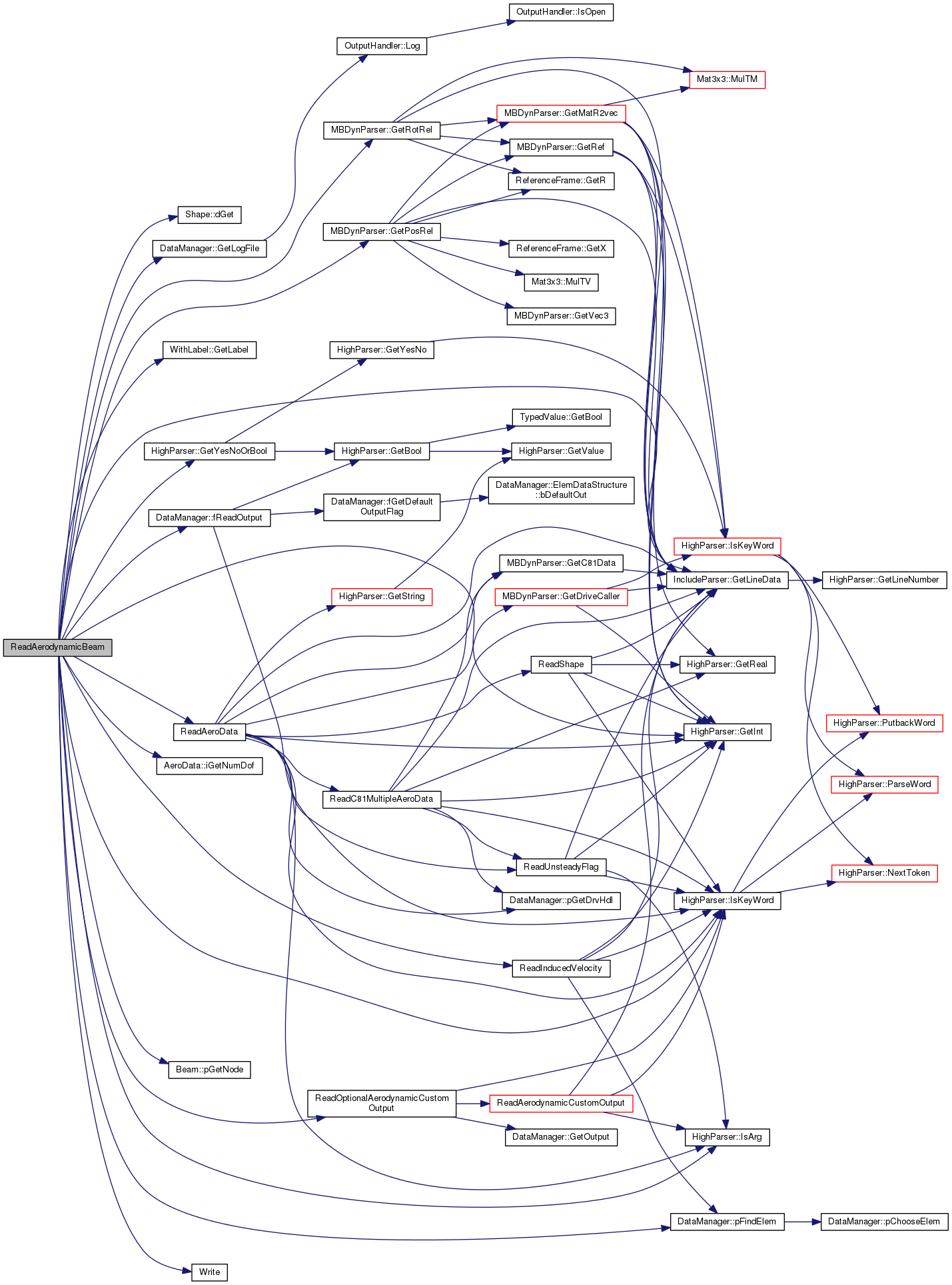

Here is the call graph for this function:

Elem* ReadAerodynamicBeam2 ( DataManager pDM,
MBDynParser HP,
const DofOwner pDO,
unsigned int  uLabel
)

Definition at line 3167 of file aeroelem.cc.

References AerodynamicOutput::AEROD_OUT_NODE, AerodynamicOutput::AEROD_OUT_PGAUSS, AerodynamicOutput::AEROD_OUT_STD, Elem::AERODYNAMIC, bDefaultUseJacobian, Elem::BEAM, DEBUGCOUTFNAME, DEBUGLCOUT, Shape::dGet(), DataManager::fReadOutput(), HighParser::GetInt(), WithLabel::GetLabel(), IncludeParser::GetLineData(), DataManager::GetLogFile(), MBDynParser::GetPosRel(), MBDynParser::GetRotRel(), HighParser::GetYesNoOrBool(), AeroData::iGetNumDof(), HighParser::IsArg(), HighParser::IsKeyWord(), MBDYN_EXCEPT_ARGS, MYDEBUG_INPUT, AerodynamicOutput::OUTPUT_NONE, DataManager::pFindElem(), Beam2::pGetNode(), ReadAeroData(), ReadInducedVelocity(), ReadOptionalAerodynamicCustomOutput(), SAFENEWWITHCONSTRUCTOR, UNKNOWN_ORIENTATION_DESCRIPTION, and Write().

Referenced by DataManager::ReadOneElem().

3171 {
3172  DEBUGCOUTFNAME("ReadAerodynamicBeam2");
3173
3174  /* Trave */
3175  unsigned int uBeam = (unsigned int)HP.GetInt();
3176
3177  DEBUGLCOUT(MYDEBUG_INPUT, "Linked to beam: " << uBeam << std::endl);
3178
3179  /* verifica di esistenza della trave */
3180  Elem *p = pDM->pFindElem(Elem::BEAM, uBeam);
3181  if (p == 0) {
3182  silent_cerr("Beam2(" << uBeam << ") not defined "
3183  "at line " << HP.GetLineData()
3184  << std::endl);
3186  }
3187  Beam2* pBeam = dynamic_cast<Beam2 *>(p);
3188  if (pBeam == 0) {
3189  silent_cerr("Beam(" << uBeam << ") is not a Beam2 "
3190  "at line " << HP.GetLineData()
3191  << std::endl);
3193  }
3194
3195  /* Eventuale rotore */
3196  InducedVelocity* pIndVel = 0;
3197  bool bPassive(false);
3198  (void)ReadInducedVelocity(pDM, HP, uLabel, "AerodynamicBeam2",
3199  pIndVel, bPassive);
3200
3201  /* Nodo 1: */
3202
3203  /* Offset del corpo aerodinamico rispetto al nodo */
3204  const StructNode* pNode1 = pBeam->pGetNode(1);
3205
3206  ReferenceFrame RF(pNode1);
3207  Vec3 f1(HP.GetPosRel(RF));
3208  DEBUGLCOUT(MYDEBUG_INPUT, "Node 1 offset: " << f1 << std::endl);
3209
3210  Mat3x3 Ra1(HP.GetRotRel(RF));
3212  "Node 1 rotation matrix: " << std::endl << Ra1 << std::endl);
3213
3214  /* Nodo 2: */
3215
3216  /* Offset del corpo aerodinamico rispetto al nodo */
3217  const StructNode* pNode2 = pBeam->pGetNode(2);
3218
3219  RF = ReferenceFrame(pNode2);
3220  Vec3 f2(HP.GetPosRel(RF));
3221  DEBUGLCOUT(MYDEBUG_INPUT, "Node 2 offset: " << f2 << std::endl);
3222
3223  Mat3x3 Ra2(HP.GetRotRel(RF));
3225  "Node 2 rotation matrix: " << std::endl << Ra2 << std::endl);
3226
3227  Shape* pChord = 0;
3228  Shape* pForce = 0;
3229  Shape* pVelocity = 0;
3230  Shape* pTwist = 0;
3231  Shape* pTipLoss = 0;
3232
3233  integer iNumber = 0;
3234  DriveCaller* pDC = 0;
3235  AeroData* aerodata = 0;
3236
3237  ReadAeroData(pDM, HP, 2,
3238  &pChord, &pForce, &pVelocity, &pTwist, &pTipLoss,
3239  &iNumber, &pDC, &aerodata);
3240
3241  bool bUseJacobian(false);
3242  if (HP.IsKeyWord("jacobian")) {
3243  bUseJacobian = HP.GetYesNoOrBool(bDefaultUseJacobian);
3244  }
3245
3246  if (aerodata->iGetNumDof() > 0 && !bUseJacobian) {
3247  silent_cerr("AerodynamicBeam2(" << uLabel << "): "
3248  "aerodynamic model needs \"jacobian, yes\" at line " << HP.GetLineData()
3249  << std::endl);
3251  }
3252
3254  unsigned uFlags = AerodynamicOutput::OUTPUT_NONE;
3255  ReadOptionalAerodynamicCustomOutput(pDM, HP, uLabel, uFlags, od);
3256
3257  flag fOut = pDM->fReadOutput(HP, Elem::AERODYNAMIC);
3258  if (HP.IsArg()) {
3259  if (HP.IsKeyWord("std")) {
3261  } else if (HP.IsKeyWord("gauss")) {
3263  } else if (HP.IsKeyWord("node")) {
3265  } else {
3266  silent_cerr("AerodynamicBeam2(" << uLabel << "): "
3267  "unknown output mode at line " << HP.GetLineData()
3268  << std::endl);
3270  }
3271
3272  } else if (fOut) {
3274  }
3275  fOut |= uFlags;
3276
3277  Elem* pEl = 0;
3278
3281  AerodynamicBeam2(uLabel, pDO, pBeam, pIndVel, bPassive,
3282  f1, f2, Ra1, Ra2,
3283  pChord, pForce, pVelocity, pTwist, pTipLoss,
3284  iNumber, aerodata, pDC, bUseJacobian, od, fOut));
3285
3286  /* Se non c'e' il punto e virgola finale */
3287  if (HP.IsArg()) {
3288  silent_cerr("semicolon expected at line "
3289  << HP.GetLineData() << std::endl);
3291  }
3292
3293  std::ostream& out = pDM->GetLogFile();
3294  out << "aero2: " << uLabel;
3295
3296  Vec3 ra1 = Ra1.GetVec(1);
3297  Vec3 ra3 = Ra1.GetVec(3);
3298  doublereal dC = pChord->dGet(-1.);
3299  doublereal dP = pForce->dGet(-1.);
3300  out
3301  << " " << pNode1->GetLabel()
3302  << " ", (f1 + ra1*(dP - dC*3./4.)).Write(out, " ")
3303  << " ", (f1 + ra1*(dP + dC/4.)).Write(out, " ");
3304
3305  ra1 = Ra2.GetVec(1);
3306  ra3 = Ra2.GetVec(3);
3307  dC = pChord->dGet(1.);
3308  dP = pForce->dGet(1.);
3309  out
3310  << " " << pNode2->GetLabel()
3311  << " ", (f2 + ra1*(dP - dC*3./4.)).Write(out, " ")
3312  << " ", (f2 + ra1*(dP + dC/4.)).Write(out, " ")
3313  << std::endl;
3314
3315  return pEl;
3316 } /* End of ReadAerodynamicBeam2() */
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
Mat3x3 GetRotRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1795
long int flag
Definition: mbdyn.h:43
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Definition: matvec3.h:98
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
virtual integer GetInt(integer iDefval=0)
Definition: parser.cc:1050
std::ostream & Write(std::ostream &out, const FullMatrixHandler &m, const char *s, const char *s2)
Definition: fullmh.cc:376
Definition: beam2.h:50
virtual unsigned int iGetNumDof(void) const
Definition: aerodata.cc:362
OrientationDescription
Definition: matvec3.h:1597
static const bool bDefaultUseJacobian
Definition: aeroelem.cc:159
void ReadOptionalAerodynamicCustomOutput(DataManager *pDM, MBDynParser &HP, unsigned int uLabel, unsigned &uFlags, OrientationDescription &od)
Definition: aeroelem.cc:1351
virtual bool GetYesNoOrBool(bool bDefval=false)
Definition: parser.cc:1038
Elem * pFindElem(Elem::Type Typ, unsigned int uElem, unsigned int iDeriv) const
Definition: elman.cc:650
static bool ReadInducedVelocity(DataManager *pDM, MBDynParser &HP, unsigned uLabel, const char *sElemType, InducedVelocity *&pIndVel, bool &bPassive)
Definition: aeroelem.cc:1216
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
virtual const StructNode * pGetNode(unsigned int i) const
Definition: beam2.cc:852
void ReadAeroData(DataManager *pDM, MBDynParser &HP, int iDim, Shape **ppChord, Shape **ppForce, Shape **ppVelocity, Shape **ppTwist, Shape **ppTipLoss, integer *piNumber, DriveCaller **ppDC, AeroData **aerodata)
Definition: aerodata.cc:593
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
virtual bool IsArg(void)
Definition: parser.cc:807
Definition: elem.h:75
virtual doublereal dGet(doublereal d1, doublereal d2=0.) const =0
std::ostream & GetLogFile(void) const
Definition: dataman.h:326
double doublereal
Definition: colamd.c:52
long int integer
Definition: colamd.c:51
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
unsigned int GetLabel(void) const
Definition: withlab.cc:62
#define DEBUGLCOUT(level, msg)
Definition: myassert.h:244
Definition: shape.h:50

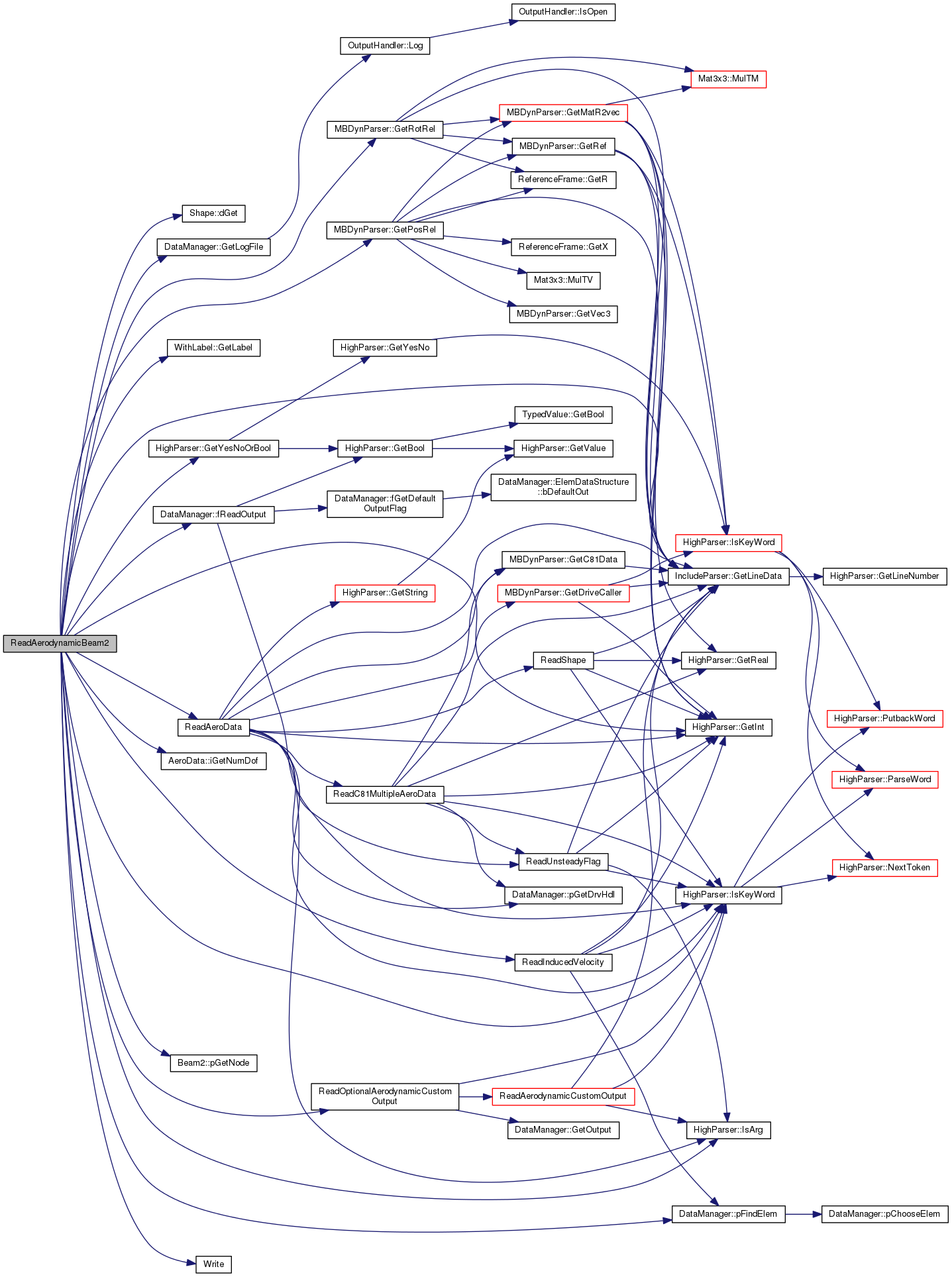

Here is the call graph for this function:

Elem* ReadAerodynamicBody ( DataManager pDM,
MBDynParser HP,
const DofOwner pDO,
unsigned int  uLabel
)

Definition at line 1361 of file aeroelem.cc.

References AerodynamicOutput::AEROD_OUT_NODE, AerodynamicOutput::AEROD_OUT_PGAUSS, AerodynamicOutput::AEROD_OUT_STD, Elem::AERODYNAMIC, bDefaultUseJacobian, grad::cos(), DEBUGCOUTFNAME, DEBUGLCOUT, Shape::dGet(), DataManager::fReadOutput(), WithLabel::GetLabel(), IncludeParser::GetLineData(), DataManager::GetLogFile(), MBDynParser::GetPosRel(), HighParser::GetReal(), MBDynParser::GetRotRel(), HighParser::GetYesNoOrBool(), AeroData::iGetNumDof(), HighParser::IsArg(), HighParser::IsKeyWord(), MBDYN_EXCEPT_ARGS, MYDEBUG_INPUT, AerodynamicOutput::OUTPUT_NONE, ReadAeroData(), ReadInducedVelocity(), DataManager::ReadNode(), ReadOptionalAerodynamicCustomOutput(), SAFENEWWITHCONSTRUCTOR, grad::sin(), Node::STRUCTURAL, UNKNOWN_ORIENTATION_DESCRIPTION, and Write().

Referenced by DataManager::ReadOneElem().

1365 {
1366  DEBUGCOUTFNAME("ReadAerodynamicBody");
1367
1368  /* Nodo */
1369  const StructNode* pNode = pDM->ReadNode<const StructNode, Node::STRUCTURAL>(HP);
1370
1371  InducedVelocity* pIndVel = 0;
1372  bool bPassive(false);
1373  (void)ReadInducedVelocity(pDM, HP, uLabel, "AerodynamicBody",
1374  pIndVel, bPassive);
1375
1376  ReferenceFrame RF(pNode);
1377  Vec3 f(HP.GetPosRel(RF));
1378
1379  DEBUGLCOUT(MYDEBUG_INPUT, "Offset: " << f << std::endl);
1380
1381  Mat3x3 Ra(HP.GetRotRel(RF));
1382
1383  doublereal dSpan = HP.GetReal();
1384  DEBUGLCOUT(MYDEBUG_INPUT, "Span: " << dSpan << std::endl);
1385
1386  Shape* pChord = 0;
1387  Shape* pForce = 0;
1388  Shape* pVelocity = 0;
1389  Shape* pTwist = 0;
1390  Shape* pTipLoss = 0;
1391
1392  integer iNumber = 0;
1393  DriveCaller* pDC = 0;
1394  AeroData* aerodata = 0;
1395
1396  ReadAeroData(pDM, HP, 1,
1397  &pChord, &pForce, &pVelocity, &pTwist, &pTipLoss,
1398  &iNumber, &pDC, &aerodata);
1399
1400  bool bUseJacobian(false);
1401  if (HP.IsKeyWord("jacobian")) {
1402  bUseJacobian = HP.GetYesNoOrBool(bDefaultUseJacobian);
1403  }
1404
1405  if (aerodata->iGetNumDof() > 0 && !bUseJacobian) {
1406  silent_cerr("AerodynamicBody(" << uLabel << "): "
1407  "aerodynamic model needs \"jacobian, yes\" at line " << HP.GetLineData()
1408  << std::endl);
1410  }
1411
1413  unsigned uFlags = AerodynamicOutput::OUTPUT_NONE;
1414  ReadOptionalAerodynamicCustomOutput(pDM, HP, uLabel, uFlags, od);
1415
1416  flag fOut = pDM->fReadOutput(HP, Elem::AERODYNAMIC);
1417  if (HP.IsArg()) {
1418  if (HP.IsKeyWord("std")) {
1420  } else if (HP.IsKeyWord("gauss")) {
1422  } else if (HP.IsKeyWord("node")) {
1424  } else {
1425  silent_cerr("AerodynamicBody(" << uLabel << "): "
1426  "unknown output mode at line " << HP.GetLineData()
1427  << std::endl);
1429  }
1430
1431  } else if (fOut) {
1433  }
1434  fOut |= uFlags;
1435
1436  Elem* pEl = 0;
1439  AerodynamicBody(uLabel, pDO, pNode, pIndVel, bPassive,
1440  f, dSpan, Ra,
1441  pChord, pForce, pVelocity, pTwist, pTipLoss,
1442  iNumber, aerodata, pDC, bUseJacobian, od, fOut));
1443
1444  /* Se non c'e' il punto e virgola finale */
1445  if (HP.IsArg()) {
1446  silent_cerr("semicolon expected at line "
1447  << HP.GetLineData() << std::endl);
1449  }
1450
1451  Vec3 Ra3 = Ra.GetVec(3);
1452  doublereal dCm1 = pChord->dGet(-1.);
1453  doublereal dPm1 = pForce->dGet(-1.);
1454  doublereal dTm1 = pTwist->dGet(-1.);
1455  Vec3 Ram1 = Ra*Vec3(std::cos(dTm1), std::sin(dTm1), 0.);
1456
1457  doublereal dCp1 = pChord->dGet(1.);
1458  doublereal dPp1 = pForce->dGet(1.);
1459  doublereal dTp1 = pTwist->dGet(1.);
1460  Vec3 Rap1 = Ra*Vec3(std::cos(dTp1), std::sin(dTp1), 0.);
1461
1462  std::ostream& out = pDM->GetLogFile();
1463  out << "aero0: " << uLabel
1464  << " " << pNode->GetLabel()
1465  << " ", (f - Ra3*(dSpan/2.) + Ram1*(dPm1 - dCm1*3./4.)).Write(out, " ")
1466  << " ", (f - Ra3*(dSpan/2.) + Ram1*(dPm1 + dCm1/4.)).Write(out, " ")
1467  << " ", (f + Ra3*(dSpan/2.) + Rap1*(dPp1 - dCp1*3./4.)).Write(out, " ")
1468  << " ", (f + Ra3*(dSpan/2.) + Rap1*(dPp1 + dCp1/4.)).Write(out, " ")
1469  << std::endl;
1470
1471  return pEl;
1472 } /* End of ReadAerodynamicBody() */
flag fReadOutput(MBDynParser &HP, const T &t) const
Definition: dataman.h:1064
Mat3x3 GetRotRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1795
long int flag
Definition: mbdyn.h:43
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
Definition: matvec3.h:98
GradientExpression< UnaryExpr< FuncSin, Expr > > sin(const GradientExpression< Expr > &u)
Definition: gradient.h:2977
#define DEBUGCOUTFNAME(fname)
Definition: myassert.h:256
std::ostream & Write(std::ostream &out, const FullMatrixHandler &m, const char *s, const char *s2)
Definition: fullmh.cc:376
virtual unsigned int iGetNumDof(void) const
Definition: aerodata.cc:362
OrientationDescription
Definition: matvec3.h:1597
static const bool bDefaultUseJacobian
Definition: aeroelem.cc:159
void ReadOptionalAerodynamicCustomOutput(DataManager *pDM, MBDynParser &HP, unsigned int uLabel, unsigned &uFlags, OrientationDescription &od)
Definition: aeroelem.cc:1351
virtual bool GetYesNoOrBool(bool bDefval=false)
Definition: parser.cc:1038
static bool ReadInducedVelocity(DataManager *pDM, MBDynParser &HP, unsigned uLabel, const char *sElemType, InducedVelocity *&pIndVel, bool &bPassive)
Definition: aeroelem.cc:1216
Vec3 GetPosRel(const ReferenceFrame &rf)
Definition: mbpar.cc:1331
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
void ReadAeroData(DataManager *pDM, MBDynParser &HP, int iDim, Shape **ppChord, Shape **ppForce, Shape **ppVelocity, Shape **ppTwist, Shape **ppTipLoss, integer *piNumber, DriveCaller **ppDC, AeroData **aerodata)
Definition: aerodata.cc:593
#define SAFENEWWITHCONSTRUCTOR(pnt, item, constructor)
Definition: mynewmem.h:698
virtual bool IsArg(void)
Definition: parser.cc:807
Definition: elem.h:75
virtual doublereal dGet(doublereal d1, doublereal d2=0.) const =0
std::ostream & GetLogFile(void) const
Definition: dataman.h:326
GradientExpression< UnaryExpr< FuncCos, Expr > > cos(const GradientExpression< Expr > &u)
Definition: gradient.h:2978
double doublereal
Definition: colamd.c:52
long int integer
Definition: colamd.c:51
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697
unsigned int GetLabel(void) const
Definition: withlab.cc:62
Node * ReadNode(MBDynParser &HP, Node::Type type) const
Definition: dataman3.cc:2309
#define DEBUGLCOUT(level, msg)
Definition: myassert.h:244
Definition: shape.h:50
virtual doublereal GetReal(const doublereal &dDefval=0.0)
Definition: parser.cc:1056

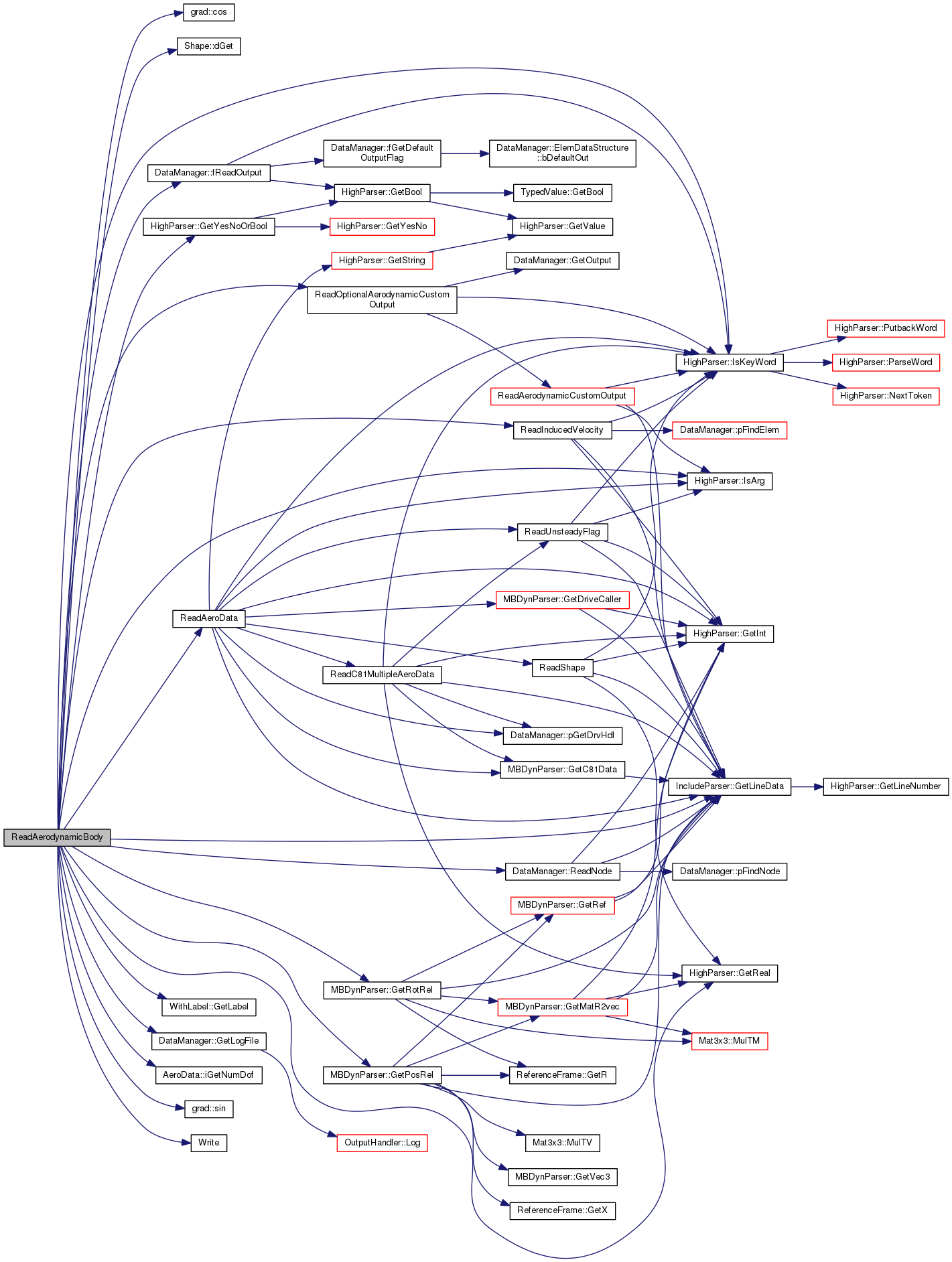

Here is the call graph for this function:

void ReadAerodynamicCustomOutput ( DataManager pDM,
MBDynParser HP,
unsigned int  uLabel,
unsigned &  uFlags,
OrientationDescription od
)

Definition at line 1295 of file aeroelem.cc.

References IncludeParser::GetLineData(), HighParser::IsArg(), HighParser::IsKeyWord(), MBDYN_EXCEPT_ARGS, AerodynamicOutput::OUTPUT_GP_ALL, AerodynamicOutput::OUTPUT_GP_CONFIGURATION, AerodynamicOutput::OUTPUT_GP_F, AerodynamicOutput::OUTPUT_GP_FORCES, AerodynamicOutput::OUTPUT_GP_M, AerodynamicOutput::OUTPUT_GP_R, AerodynamicOutput::OUTPUT_GP_V, AerodynamicOutput::OUTPUT_GP_W, AerodynamicOutput::OUTPUT_GP_X, AerodynamicOutput::OUTPUT_NONE, and ReadOptionalOrientationDescription().

Referenced by DataManager::ReadControl(), and ReadOptionalAerodynamicCustomOutput().

1297 {
1299
1300  while (HP.IsArg()) {
1301  unsigned uFlag;
1302
1303  if (HP.IsKeyWord("position")) {
1305
1306  } else if (HP.IsKeyWord("orientation")) {
1308
1309  } else if (HP.IsKeyWord("velocity")) {
1311
1312  } else if (HP.IsKeyWord("angular" "velocity")) {
1314
1315  } else if (HP.IsKeyWord("configuration")) {
1317
1318  } else if (HP.IsKeyWord("force")) {
1320
1321  } else if (HP.IsKeyWord("moment")) {
1323
1324  } else if (HP.IsKeyWord("forces")) {
1326
1327  } else if (HP.IsKeyWord("all")) {
1329
1330  } else {
1331  break;
1332  }
1333
1334  if (uFlags & uFlag) {
1335  silent_cerr("AerodynamicElement(" << uLabel << "): "
1336  "duplicate custom output "
1337  "at line " << HP.GetLineData()
1338  << std::endl);
1340  }
1341
1342  if (uFlag & AerodynamicOutput::OUTPUT_GP_R) {
1343  od = ReadOptionalOrientationDescription(pDM, HP);
1344  }
1345
1346  uFlags |= uFlag;
1347  }
1348 }
#define MBDYN_EXCEPT_ARGS
Definition: except.h:63
OrientationDescription ReadOptionalOrientationDescription(DataManager *pDM, MBDynParser &HP)
Definition: dataman3.cc:2531
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910
virtual bool IsArg(void)
Definition: parser.cc:807
virtual HighParser::ErrOut GetLineData(void) const
Definition: parsinc.cc:697

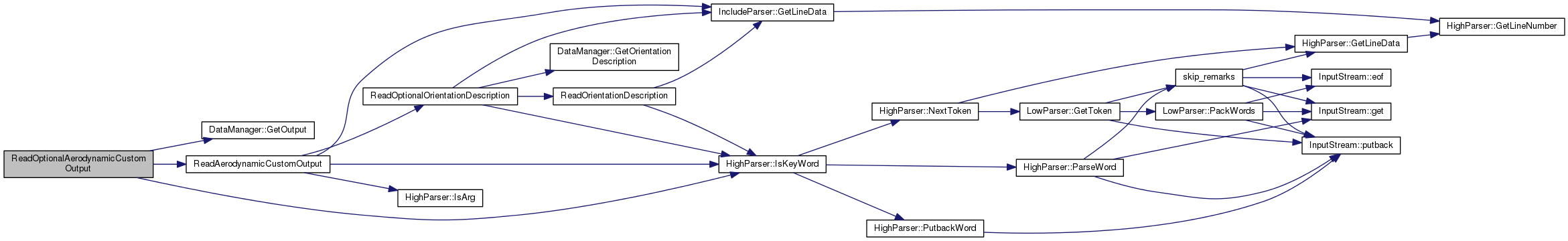

Here is the call graph for this function:

void ReadOptionalAerodynamicCustomOutput ( DataManager pDM,
MBDynParser HP,
unsigned int  uLabel,
unsigned &  uFlags,
OrientationDescription od
)

Definition at line 1351 of file aeroelem.cc.

References Elem::AERODYNAMIC, DataManager::GetOutput(), HighParser::IsKeyWord(), and ReadAerodynamicCustomOutput().

Referenced by ReadAerodynamicBeam(), ReadAerodynamicBeam2(), and ReadAerodynamicBody().

1353 {
1354  pDM->GetOutput(Elem::AERODYNAMIC, uFlags, od);
1355  if (HP.IsKeyWord("custom" "output")) {
1356  ReadAerodynamicCustomOutput(pDM, HP, uLabel, uFlags, od);
1357  }
1358 }
void GetOutput(Elem::Type t, unsigned &, OrientationDescription &) const
Definition: dataman.cc:871
void ReadAerodynamicCustomOutput(DataManager *pDM, MBDynParser &HP, unsigned int uLabel, unsigned &uFlags, OrientationDescription &od)
Definition: aeroelem.cc:1295
virtual bool IsKeyWord(const char *sKeyWord)
Definition: parser.cc:910

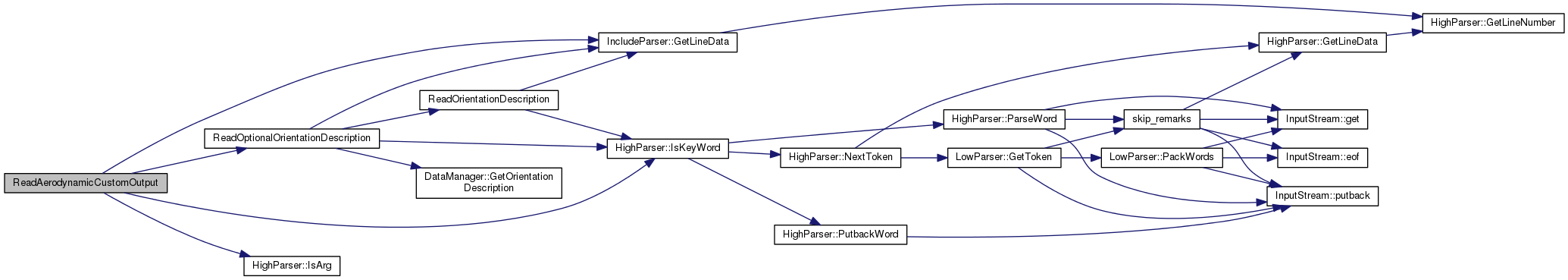

Here is the call graph for this function:
